Product Introduction

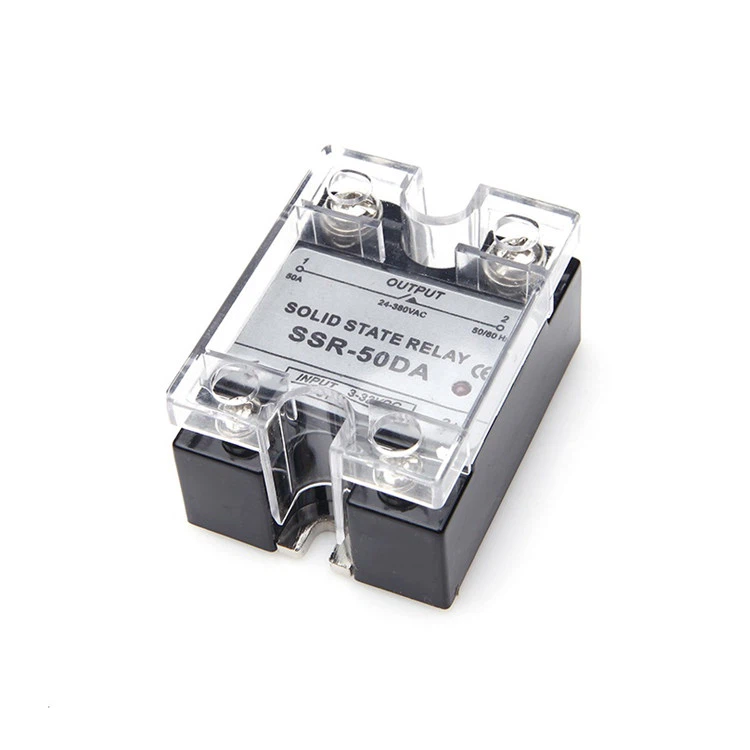

Mini Solid State Relay (SSR) is an electronic switching device that switches states when external voltage is applied along its n-type and p-type junctions. SSR has small control signals that control large load currents or voltages. It consists of a sensor that responds to an appropriate input (control signal), a solid-state electronic switching device that switches the power supply to the load circuit, and some coupling mechanisms to enable the control signal to activate the switch without mechanical components.
Product Parameter (Specification)
|
Dimension |
105.5L*74W*33H |
|
Load Voltage |
24V~450VAC |
|
Load Current |
10A, 15A, 20A, 30A, 40A, 50A, 60A, 75A, 90A |
|
Input Voltage |
A, D |
|
Dielectric Strength |
2500VAC |
|
Insualtion Resistance |
≥50M |
|
On Voltage |
≤1.6V |
|
Off Leakage Current |
≤5mA |
|
On-off Time |
≤10mS |
|
Ambient Temperature |
-30℃~+70℃ |
|
Huminity |
35%~85% |
|
Weight |
≈425g |
Input Voltage
|
SSR-AA (A) |
90-250VAC |
|
SSR-DA (D) |
3-32VDC |
Product Feature And Application
Excellent Performance
√ Mini black shell
√ 8 screw caps
√ Anti vibration
√ Load solid-state relay
Product Qualification
QIANJI Relay Co., Ltd. was established in 2000. It is a manufacturing supplier company that integrates research and development, production, and sales. Our main products are power relays, universal relays, automotive relays, PCB relays, etc. We have a professional technical and sales team, complete production systems and equipment, and provide customers with complete BOM tables for quick quotation. We have our own brand and technology.
FAQ
Q: How to order our products?
A: 1) Please let us know the model and quantity, as well as any other requirements you may require.
2) We will create a PI for you.
3) After you confirm the PI, we will arrange the order for you after receiving your payment.
4) After the goods are completed, we will send them to you and provide you with the tracking number.
5) We will track your goods until you receive them.
Q: What is your warranty?
A: 1-2 years.
Q: What is your contact information?
A: Our address is Liushi Town, Zhejiang Province, China.
Q: What is your transportation method?
A: We transport by express, air, sea, or train. Usually we conduct inspections and comparisons, and then provide the most suitable transportation method for customers.
Q: What is the minimum order quantity?
A: Minimum minimum order quantity for first order=1 piece.
Q: If I want to place an order, what payment method do you accept?
A: We accept wire transfers, PayPal, Western Union transfers, letters of credit, etc.
Q: If I want to release an order, what is the process?
A: Thank you. You can send us a query through Alibaba or email us, and we will reply to you.
