How to Wire an 8-Pin Relay for Beginners

Wiring an 8-pin relay may look hard at first. But you can learn it by understanding its design and use. This relay works like a switch. It lets you control strong circuits using a weak signal. You often see it in cars or smart home systems. Follow simple steps to connect the control voltage to the right pins. Make sure to wire the load terminals properly. Pay close attention to the pin setup, and your relay will work quickly.





Key Takeaways



An 8-pin relay works like a switch. It lets you control big devices using a small signal. This is helpful for cars and smart homes.

Knowing the pin setup is very important. Attach the control power to A1 and A2. Connect the device to COM, NO, or NC, depending on what you need.

Always turn off power before starting. This keeps you safe. Use a multimeter to test and make sure the relay is set up right.

Pick the correct wire size to avoid overheating. Use thick wires for big devices and thin ones for small controls.

Test the relay after setting it up. Listen for a click and check if the device works.





Basics of an 8-Pin Relay



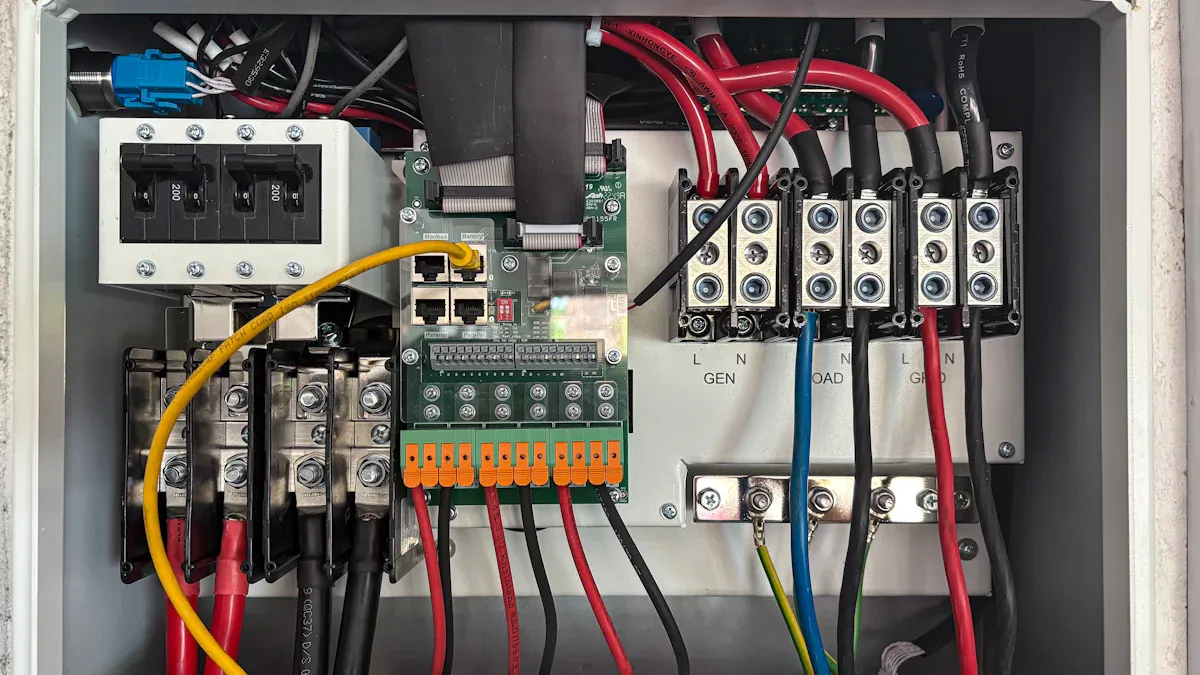

Basics of an 8-Pin Relay



What is an 8-pin relay?



An 8-pin relay is a special switch that uses electricity. It can control two circuits at the same time. A small signal turns a bigger circuit on or off. This makes it great for managing many devices easily. Unlike simpler relays with fewer pins, the 8-pin relay is more flexible.

Here's a quick comparison:



Relay Type

Number of Pins

Configuration Type

Functionality

8-pin Relay

8

DPDT

Controls two circuits at once

Traditional Relay

Less than 8

SPST/SPDT

Handles one circuit at a time



This table shows why the 8-pin relay is better for complex tasks.





Terminal layout and pin configuration



Knowing the pin layout is important for wiring an 8-pin relay. The relay has eight pins in a set pattern. These pins include:

A1 and A2: Where the control voltage connects.

Common (COM): The main pin for the load.

Normally Open (NO): Connects to the load when active.

Normally Closed (NC): Connects to the load when inactive.

The other pins are for the second circuit. This lets the relay manage two circuits at once. Always check the datasheet for exact pin details.





How an 8-pin relay works



An 8-pin relay uses a coil and magnet to work. When voltage goes to A1 and A2, the coil makes a magnetic field. This moves a switch inside the relay. It changes the connection between the common pin and the NO or NC pins.

For example, when the relay is off, the common pin connects to NC. When it turns on, the common pin connects to NO. This lets you control circuits or devices easily.

Learning these basics helps you wire and use an 8-pin relay confidently.





Step-by-Step Wiring Guide for an 8-Pin Relay

Step-By-Step Wiring Guide For An 8-Pin Relay



Tools and materials needed



Before starting, gather all the tools and materials. This helps make wiring easier and safer. Here's what you'll need:

8-pin relay: The main part of the project.

Multimeter: To check connections and voltage.

Screwdriver: Tightens the terminal screws.

Wire stripper: Removes wire insulation.

Wires: Pick the right size for your circuit.

Two-pole MCB (Miniature Circuit Breaker): Protects from overloads.

Pushbuttons: One normally closed (NC) and one normally open (NO).

Light bulb and holder: Tests if the relay works.

Having these items ready avoids delays during wiring.





Understanding the relay terminals



Knowing the layout of your relay is very important. Each pin has a job, so connect them correctly for it to work.

A1 and A2: These are the coil pins. They turn on the relay when voltage is applied.

Common (COM): The main pin for the load.

Normally Open (NO): Connects to the load when the relay is on.

Normally Closed (NC): Connects to the load when the relay is off.

If your relay controls two circuits, there will be another set of COM, NO, and NC pins. Check the datasheet for exact pin numbers. Use a multimeter to confirm connections if unsure.





Wiring the control voltage (A1 and A2)



Follow these steps to connect the control voltage:

Connect the phase wire from the MCB to pins 2, 1, and 8.

Attach the neutral wire from the MCB to pin 7.

Add two pushbuttons in series with the phase wire. First, connect the NC pushbutton, then the NO pushbutton. Link these to pins 2, 1, and 8.

Use a jumper wire to connect the phase wire (from the MCB) to pins 11 and 6.

Add another jumper wire as a holding wire. Connect it from the second NC pushbutton terminal to pin 3.

This setup sends the right voltage to the relay coil when the pushbuttons are pressed. Always check your wiring before moving forward.

Tip: Use a multimeter to ensure voltage reaches A1 and A2. This prevents future problems.

Once done, you've wired the control voltage for your relay. Next, connect the load terminals and test the relay.





Wiring the load terminals (common, normally open, normally closed)



After wiring the control voltage, connect the load terminals next. These terminals-Common (COM), Normally Open (NO), and Normally Closed (NC)-control the devices or circuits linked to your 8-pin relay. Follow these simple steps:

Find the load terminals: Look for the COM, NO, and NC pins on your relay. These are marked on the relay or in its datasheet. If unsure, use a multimeter to check their positions.

Connect the common terminal (COM): Attach one end of the load wire to the COM pin. This pin switches between NO and NC.

Wire the Normally Open (NO) terminal: Connect the other end of the load wire to the NO pin. This makes the circuit work only when the relay is on.

Wire the Normally Closed (NC) terminal: If you want the circuit to stay on when the relay is off, connect the load wire to the NC pin instead.

Tip: Use wires with insulation and tighten connections to avoid loose wires or short circuits.

The way you arrange these terminals affects how well the relay works. Good wiring improves power flow and makes the relay more reliable. Proper setup ensures your circuit runs smoothly.





Testing the relay



Once the load terminals are wired, test the relay to ensure it works. Testing checks if your connections are correct. Follow these steps:



Check your connections again: Make sure all wires are firmly attached to the right pins. Use a multimeter to test the COM, NO, and NC pins for proper connection.



Turn on the control voltage: Power up the relay by sending voltage to the A1 and A2 pins. This activates the relay coil.



Watch the relay in action: Listen for a click sound when the relay switches. This shows the internal switch is moving between NO and NC.



Test the connected circuit: See if the device or circuit works as planned. For example, if a light bulb is wired to the NO pin, it should light up when the relay is on.



Fix issues if needed: If the relay doesn't work, check your wiring and confirm the control voltage matches the relay's needs.



Note: Always test your relay in a safe place. Don't touch live wires to avoid getting shocked.



By following these steps, you can make sure your 8-pin relay is wired and working properly. Once tested, it's ready for your project.





Applications of 8-Pin Relays



Switching high-power devices



An 8-pin relay is great for running powerful devices. It connects small control circuits to big power loads safely. For example, it can turn on motors, heaters, or machines. The relay keeps the control circuit safe by separating it from high power. This makes it a good choice for safe and efficient setups.

When wired properly, it handles up to 10A at 240V AC or 28V DC. This means it can power strong devices without harming the control circuit. Always check the relay's details to match it with your device.





Controlling multiple circuits



The 8-pin relay can manage two circuits at the same time. This is helpful when controlling more than one device or system. For example, one circuit can run a fan, and another can turn on a light. Its dual-circuit design reduces the need for extra parts.

Each circuit works separately because of its DPDT (Double Pole Double Throw) setup. This lets you control two loads with one relay. It saves space and makes wiring easier for your project.





Use in automotive and home automation



In cars, the 8-pin relay controls lights, horns, and other parts. It helps these work well without overloading the car's system. At home, it manages smart devices like thermostats, alarms, and lights.



The relay is strong and lasts a long time. For example, it works for 105 electrical uses and 106 mechanical uses. It has insulation resistance of ≥500MΩ and can handle ≥1200V AC. These features make it safe and reliable for frequent use.



Specification

Value

Contact Capacity (Resistive load)

10A/240V AC, 28V DC

Coil Power

DC≤0.9W, AC≤1.2VA

Service life (Electrical)

105 Times

Service life (Mechanical)

106 Times

Dielectric Strength (Between open contact)

≥1200V AC 50Hz/1min

Insulation Resistance

≥500MΩ at 500V DC



These details show why the 8-pin relay is popular for cars and homes. It handles high power and lasts long, making it useful for many tasks.





Safety Tips for Wiring an 8-Pin Relay

Safety Tips For Wiring An 8-Pin Relay



Turn off power before wiring



Always switch off the power before starting your 8-pin relay wiring. This keeps you safe from electric shocks and avoids short circuits. Even small mistakes can harm the relay or other parts.

Disconnect the main power source and check with a multimeter. Test to ensure no current is flowing. If using a battery system, remove the battery or disconnect its terminals.

Tip: Label the power switch to stop others from turning it on while you work.

Turning off the power makes wiring safer and reduces risks.





Check terminal connections



Before wiring, confirm the terminal layout of your relay. Each pin has a job, and wrong wiring can cause problems. Use the relay's datasheet or diagram to identify the pins.

Check these:

A1 and A2: These connect to the control voltage.

Common (COM): This is the main pin for your load.

Normally Open (NO): This connects to the load when active.

Normally Closed (NC): This connects to the load when inactive.

Use a multimeter to test pin roles and avoid errors. If your relay has two circuits, repeat this for the second set of pins.

Note: Wrong wiring can overheat or damage the relay. Take your time to do it right.





Choose the right wire size



Picking the correct wire size is key for safety and performance. The wire size decides how much current it can handle without overheating. This is important for high-power devices.

Keep these points in mind:

Thin wires, like 12 AWG for a 40-amp relay, may overheat. This can cause fires or damage.

Correct wire size helps the relay last longer and work better.

Use thinner wires for control circuits and thicker ones for load circuits.

Check a wire gauge chart to match wire size to your relay's current. For example, use 14 AWG for up to 15 amps and 10 AWG for up to 30 amps.

Tip: Always use wires with strong insulation to avoid short circuits.

Using the right wire size improves safety and makes your relay circuit work well.





Avoid overloading the relay



Overloading an 8-pin relay can break it and stop your circuit. To prevent this, know the relay's limits and stay within them. Follow these steps to avoid overloading:



1. Check the relay's specifications

Each relay has a maximum current and voltage it can handle. You can find these details in the datasheet or on the relay. For example, an 8-pin relay might handle 10A at 240V AC or 28V DC.

Tip: Match the relay's capacity to your devices. If your device needs more power, pick a stronger relay.





2. Calculate the load requirements

Before wiring, figure out how much current your circuit uses. Add up the current for all devices connected to the relay. If the total is too high, the relay may overheat or fail.

Use this formula to find the current:

Current (I) = Power (P) ÷ Voltage (V)

For example, if a device uses 120 watts at 12 volts:

I = 120 ÷ 12 = 10A

This means the relay must handle at least 10 amps.

3. Use a protective device

Add a fuse or circuit breaker to your setup. These devices stop power flow if the current gets too high. This protects the relay and other parts.



Protective Device

Purpose

Example

Fuse

Cuts power when overloaded

10A glass fuse

Circuit Breaker

Resets after tripping

15A MCB



Note: Pick a fuse or breaker slightly above the relay's limit. For a 10A relay, use a 12A fuse.



4. Avoid continuous high loads

Relays work better with short bursts of high current. Long-term high loads can damage the relay contacts. If your circuit needs constant high power, use a contactor instead.



5. Monitor for signs of overload

Watch for signs that your relay is overloaded, like:

The relay feels very hot.

You hear buzzing or clicking sounds.

Devices connected to the relay don't work right.

If you notice these problems, turn off the power and check your wiring.

By following these tips, you can keep your 8-pin relay safe from overloading. This helps your circuit work well and last longer.

Wiring an 8-pin relay is easy if you follow steps. First, find the terminals and connect control voltage to A1 and A2. Next, attach the load wires to COM, NO, or NC, depending on your circuit. Lastly, test the relay to make sure it works.

Tip: Check the terminal layout twice. Use a multimeter to confirm connections. This avoids mistakes and keeps your circuit safe.

Start with simple circuits to learn. As you practice, try advanced projects like smart homes or car systems. With time, you'll get really good at using relays! 😊





FAQ



What happens if I wire the relay incorrectly?



Wrong wiring can make the relay stop working or overheat. It might also harm connected devices. Always check the pin layout carefully. Use a multimeter to confirm connections before turning on the circuit.





Can I use an 8-pin relay for DC circuits?



Yes, you can use an 8-pin relay with DC circuits. Make sure the relay matches your circuit's voltage and current needs. Look at the datasheet for details like coil voltage and contact limits.





How do I know if my relay is working?



When control voltage is applied, listen for a click sound. This shows the relay is switching. Use a multimeter to test the NO and NC pins. You can also connect a small load, like a bulb, to check if it works.





What is the difference between NO and NC terminals?



The NO terminal connects to the load when the relay is on. The NC terminal connects to the load when the relay is off. Pick the terminal based on whether you want the circuit active or inactive by default.





Can I control multiple devices with one 8-pin relay?



Yes, an 8-pin relay can manage two circuits at once. Its DPDT design lets you control multiple devices easily. This saves space and makes wiring simpler.

Tip: Keep the total load within the relay's limit to avoid damage.
