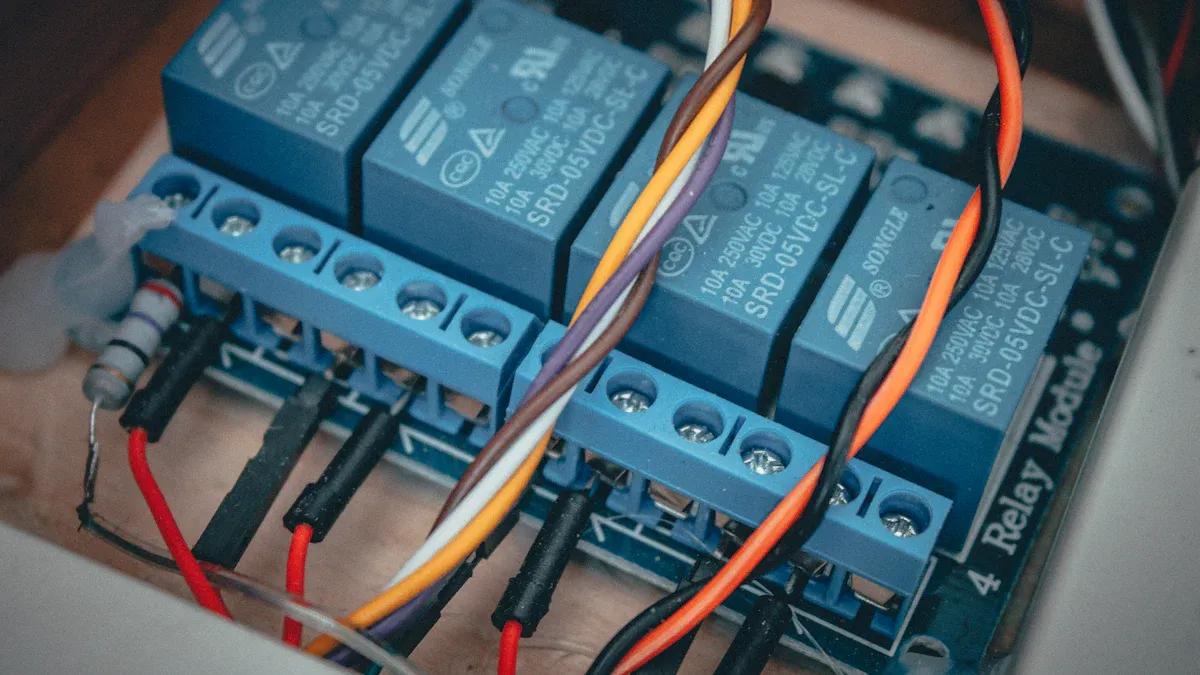

The Influence of Contact Form of Relays on Circuit Performance

You choose how circuits work when you pick the contact form of relay. Each relay type changes how current moves and can change how long your circuit works. Contact resistance can slow signals or make heat. Pressure helps keep connections strong. Material decides if your relay lasts a long time. Bounce and arcing can cause mistakes or harm. Clean contacts are very important in low-voltage circuits. If you pick the right relay for your needs, your circuit works better and is more reliable.

Think about resistance, pressure, and material before you pick.

Watch for bounce, arcing, and dirt to keep your circuit safe.

Key Takeaways

Pick the correct relay contact form for your circuit's voltage and current. This helps your circuit work better. - Clean relay contacts often. This stops dirt and rust from making low-voltage circuits fail. - Check contact pressure to keep connections strong. If pressure is too low, lights may flicker. If it is too high, parts can wear out. - Watch out for contact bounce. Use debounce circuits or low bounce relays to keep signals steady. - Choose the right contact materials. Use silver for power and gold for low-voltage. This makes the relay last longer.

Contact Resistance

Mechanism

Contact resistance happens when two metal parts touch inside a relay. Every relay you use has this. The metal has tiny bumps and spaces. These make it harder for electricity to pass. This slows down the current. If a relay has high contact resistance, your circuit can lose power or get hot. The contact form of relay changes how much resistance there is. Different forms push the contacts together in different ways. This affects how well electricity moves.

Reliability

High contact resistance can make your circuit work poorly. Devices might turn off or not work right. If resistance goes up, the relay may not switch or send weak signals. This problem gets worse over time. Dust, rust, or wear can make resistance higher. You should check your relays often. Circuits need low resistance at the contact points to work well. If you do not check, your equipment may break more often.

Mitigation

You can lower contact resistance by doing a few things:

Pick relays with strong contact pressure.

Use contacts made from good metals like silver or gold.

Clean contacts before you put in relays.

Use relays made for your circuit's voltage and current.

Tip: Always follow the maker's instructions for relay care. Clean contacts and good installation help your circuit last longer.

If you do these things, your circuit stays safe and works well. You stop common problems and make your devices work better.

Contact Pressure

Performance

Contact pressure is the force that pushes contacts together. You need enough pressure for a good connection. If pressure is too low, contacts might not touch well. This can make resistance high and signals weak. If pressure is too high, contacts can wear out fast. You might see dents or marks on the metal. This damage can make the relay not last as long.

You can notice contact pressure in different ways:

Low pressure can make lights flicker or turn off.

High pressure can make the relay loud or break early.

The right pressure keeps your circuit safe and steady.

Note: Always look at the relay's datasheet for the best pressure. This helps you stop common problems.

Optimization

You can help your circuit by setting the right contact pressure. First, pick a relay with the right pressure for your job. Some relays let you change pressure with a spring or screw. You should test your circuit to see if the relay works well.

Here are some tips to get the best contact pressure:

Pick relays made for your voltage and current.

Do not push contacts together by hand.

Clean contacts before you put in the relay.

Change old relays to keep pressure right.

Pressure Level	Effect on Circuit	Recommended Action
Too Low	High resistance, noise	Add pressure or change relay
Too High	Fast wear, damage	Use right relay or fix spring
Just Right	Stable, reliable	Check and care for relay often

The contact form of relay you pick changes how pressure works. Each type has its own way to connect and disconnect. You should pick the right contact form for your circuit to get the best results.

Contact Material

Types

You need to know what kind of metal your relay uses. The contact material changes how well your relay works. Some metals carry electricity better. Others last longer or resist damage. Here are some common types you will find:

Silver: You see silver in many relays. It carries electricity very well. Silver contacts work best in clean, dry places.

Gold: Gold does not rust or tarnish. You use gold contacts in small, low-power circuits. They cost more but last longer in special jobs.

Silver Alloy: This mixes silver with other metals like cadmium oxide. It helps stop arcing and makes the relay stronger.

Copper: Copper carries electricity well but can wear out fast. You often see copper in cheaper relays.

Platinum: Platinum resists heat and corrosion. You use it in places with high temperatures or harsh chemicals.

Tip: Always check the relay's datasheet. It tells you what metal the contacts use.

Durability

You want your relay to last a long time. The contact material plays a big part in this. Some metals handle heat, dirt, and sparks better than others. If you use the wrong material, your relay may fail early.

Material	Lifespan	Best Use Case
Silver	Medium-High	General circuits
Gold	High	Low-voltage, clean places
Silver Alloy	High	High current, tough jobs
Copper	Low	Short-term, low cost
Platinum	Very High	Harsh, hot environments

You should match the contact material to your circuit's needs. The contact form of relay also affects which material works best. If you pick the right one, you get better performance and fewer problems.

Note: Clean contacts last longer. Dirt and rust can ruin even the best material.

Contact Bounce

Effects

When you use a relay, you might notice a quick flicker or noise in your circuit. This happens because of contact bounce. Contact bounce means the relay contacts do not settle right away when they close or open. The contacts hit each other and bounce a few times before stopping. Each bounce can make a short, unwanted signal. You see this most in fast circuits or when you switch things quickly.

Contact bounce can cause problems like:

False signals in digital circuits

Extra wear on contacts

Unstable readings from sensors

Flickering lights or displays

If you work with sensitive electronics, contact bounce can make your devices act strange. You might see random on-off signals or hear clicks. The contact form of relay you choose affects how much bounce you get. Some forms bounce less because they close more smoothly.

Tip: If you see random signals or flickers, check for contact bounce first.

Solutions

You can fix contact bounce with a few smart steps. First, pick a relay with a fast, clean switching action. Some relays use special springs or shapes to reduce bounce. You can also add simple circuits to help.

Here are ways to solve contact bounce:

Use a debounce circuit. This circuit smooths out the signal and removes extra bounces.

Choose relays with low bounce ratings. Look for this in the datasheet.

Add a small capacitor across the contacts. This helps absorb the bounce.

Test your relay in your real circuit. Watch for flickers or noise.

Solution	How It Helps	Where to Use
Debounce Circuit	Cleans signal	Digital circuits
Low Bounce Relay	Less wear, stable	All applications
Capacitor	Absorbs noise	Simple circuits

You keep your circuit safe and steady when you handle contact bounce. You get better performance and fewer problems.

Arcing

Impact

Arcing happens when electricity jumps between relay contacts. This makes a spark that can hurt your circuit. Arcing is common when you switch high voltages or currents. If the relay gap is small, a glow discharge starts at about 320V with a 0.0003 inch gap. The glow discharge keeps going at about 300V. Arc discharge can also happen at lower voltages, depending on the contact material.

Arcing brings many problems:

It burns and damages the contact surface.

It makes contact resistance go up.

It makes the relay not last as long.

It can cause noise and wrong signals.

You may see your relay get hot or stop working after many arcs. Dust, rust, and water drops make arcing worse. Dust can let electricity travel and cause short circuits. Rust makes the metal weak and causes more problems. Water drops let electricity jump gaps and make sparks.

Problem	What Happens	Result
Burned Contacts	Surface damage	Higher resistance
Pitted Metal	Uneven surface	Unstable switching
Heat Build-up	Extra energy loss	Relay failure

The contact form of relay you pick changes how much arcing you get. Some forms pull contacts apart faster or use special metals to stop sparks.

Prevention

You can stop arcing by doing smart things. Check your relays often to find problems early. Clean your relays and look for dust or rust. Safety lessons teach you how to stay safe from arcs. Wear safety gear to protect yourself.

Here are ways to stop arcing:

Take dust off electrical parts.

Look for rust and fix it fast.

Keep circuits dry so water does not build up.

Check relays often and change old parts.

Tip: Always check for risks before they cause trouble.

You keep your circuit and yourself safe when you stop arcing. Good habits and picking the right relay help your system work well.

Clean Contacts in Low-Voltage Applications

Importance

Clean contacts are very important for low-voltage circuits. Dirt or dust can stop electricity from moving. Even a thin layer of grime can block the signal. Low-voltage signals are not strong. They cannot get through dirty contacts. Devices might stop working or show wrong numbers. Things like sensors and alarms need clean relay contacts. If you do not clean them, your system can break a lot.

The contact form of relay you pick also matters. Some forms close tightly and push dirt away. Other forms need more cleaning. Always check relay contacts before you use them. Clean contacts help your circuit work well and stay safe.

Tip: Clean contacts help your devices last longer and work better.

Maintenance

You can keep relay contacts clean by doing easy things. Taking care of them often stops problems early. Here are some ways to keep contacts clean:

Set the voltage to 30V and keep the current at 2A when you clean the relay.

Use AC current for cleaning, but do not go over the relay's limits.

Watch contact resistance with the I/V method to see if cleaning works.

You should also make a plan for relay care. Change relays at certain times. Use relays with re-polished contacts if you can. A monitoring system helps you keep track of cleaning and find problems early.

Maintenance Procedure	Description
Use of Electrical Current	Use set voltage and current to clean contacts well.
Regular Replacement	Change relays on a schedule with re-polished contacts.
Monitoring System	Make cleaning regular and check if it works.

Note: Always follow the relay maker's rules for cleaning and care.

If you keep contacts clean, your low-voltage circuits will work well. You will have fewer problems and your devices will work better.

Protection Schemes

Arc Suppression

You can protect your circuit by using arc suppression methods. Arcing happens when electricity jumps between relay contacts. This can damage your relay and make your circuit unsafe. You need to stop arcing to keep your devices working well.

One way to suppress arcs is to use snubber circuits. These circuits use resistors and capacitors to absorb the energy from the arc. You can also use diodes across relay coils. Diodes help stop voltage spikes that cause arcing. Some relays have built-in arc suppression features. You should check the datasheet to see if your relay has this.

Here are some arc suppression methods:

Add a snubber circuit to your relay.

Use a diode across the coil.

Pick relays with arc suppression built in.

Tip: Always test your circuit after adding arc suppression. You want to make sure your relay switches smoothly.

Method	How It Works	Best Use Case
Snubber Circuit	Absorbs arc energy	High voltage circuits
Diode	Blocks voltage spikes	DC relay coils
Built-in Feature	Stops arcs automatically	Sensitive equipment

Degradation Prevention

You can prevent relay degradation by using good protection schemes. Degradation means your relay wears out or fails over time. You want your relay to last as long as possible.

Clean contacts help prevent degradation. You should clean your relay contacts often. Use the right cleaning method for your relay type. You can also use relays with special coatings that resist wear. Some relays use hard metals that last longer.

You should also avoid switching high currents too often. High currents make contacts wear out faster. If you need to switch high currents, pick a relay made for that job. The contact form of relay you choose can help prevent degradation. Some forms handle wear better than others.

Note: Make a schedule to check and clean your relays. This helps you find problems before they get worse.

Here are ways to prevent degradation:

Clean contacts regularly.

Use relays with hard contact materials.

Avoid switching high currents too often.

Pick the right contact form for your application.

You keep your circuit safe and your devices working longer when you use these protection schemes.

Contact Form of Relay Selection

Application Fit

You must pick a relay that fits your job. Every job needs something different. Factories can get very hot and shake a lot. Car makers need relays that work with bumps and fast changes. People who make electronics want small relays that are quiet and safe.

You should check a few things before you choose a relay. The table below shows what to look for:

Criteria	Description
Environmental Factors	Make sure the relay works in hot, cold, wet, or dusty places.
Mechanical Stresses	Check if the relay can handle shaking, dropping, or pressing.
Safety Requirements	Look for good insulation, high voltage safety, and safe electromagnetic features.
Electrical Parameters	Match the relay's coil voltage, power use, and switching voltage to your circuit.

You also need to think about rules from other countries. If you sell in North America, look for UL or CUL marks. If you sell in Europe, check for VDE or TüV marks.

Certification	Region of Applicability
UL/CUL	North America
VDE	Europe
TüV	Europe

Tip: Always read the datasheet and check for the right mark before you buy a relay. This helps you stop problems later.

Best Practices

You can stop mistakes if you follow some easy rules. Many people pick the wrong relay because they do not know what their circuit needs. You must understand your project before you choose.

Here are the most common mistakes and how to avoid them:

Choosing the correct model: Know what you want to control. If you pick the wrong relay, your circuit will not work.

Understanding of the contact point: Learn the difference between normally open and normally closed contacts. This helps you set up your circuit the right way.

Method to eliminate contact sparks: Use spark suppression circuits. These circuits protect your relay and help it last longer.

You can follow these best practices for better results:

Read the relay datasheet with care.

Test the relay in your real circuit before using it everywhere.

Clean and check contacts often.

Use spark suppression if you switch high currents.

Pick relays with the right marks for your area.

Note: If you take time to match the contact form of relay to your job, your circuit will be safer and work better.

Real-World Examples

Industrial

Factories use relays in many machines. Relays help control motors, pumps, and lights. If you pick the wrong contact form, things can break. Silver contacts are good for lamps and capacitive loads. They can handle big surges of current. You need to watch out for arcing. Arcing can hurt contacts fast. Maintenance teams clean contacts and change old relays a lot. Gold-plated contacts are best for small signals. They stop tarnish and help your system last longer.

Tip: Use different contacts for signals and power. This keeps contacts from wearing out too fast.

Load Type	Recommended Contact Material	Key Considerations
Lamp and Capacitive Loads	Silver Contacts	Big surges can make arcs and wear out contacts.
Power Levels > 0.4VA	Silver Contacts	Some arcing cleans tarnish, but too much ruins contacts.
Power Levels < 0.4VA	Gold-Plated Contacts	Stops tarnish and helps contacts last; bifurcated contacts work too.
Signal Contacts	Gold-Plated or Bifurcated	Do not use signal contacts for high power. This stops extra wear.

Automotive

Relays help start your car and turn on lights. Cars use many relays in their control units. These relays must work in hot, cold, and bumpy places. Car makers want relays that last a long time. Strong contact forms and good materials are important. Small relays with better contacts help keep cars safe. Silver contacts work well for high power jobs. Gold-plated contacts are better for small signals. They stop oxides from building up.

Do not use silver contacts for small power jobs.

Use debounce tricks for signals.

Keep signal and power contacts apart.

Consumer Electronics

Relays are in home gadgets, computers, and audio gear. These things need quiet and steady switching. Gold-plated contacts are best for small signals. Do not use silver contacts for tiny signals. Silver can get oxides that block signals. Bifurcated contacts help with weak signals. Clean contacts and test relays often to keep things working.

Note: Picking the right relay and caring for it helps your electronics last longer.

If you know how the contact form of relay changes resistance, pressure, and material, your circuit works better. Pick the right relay for your project. Clean contacts often and check them to avoid problems. Look at this table to help you pick the best contact form:

Contact Form Type	Description
Form A	This is a normally open contact. It closes when you add voltage.
Form B	This is a normally closed contact. It opens when you add voltage.
Form C	This type has both Form A and Form B. It switches between them when you add voltage.

Keep asking questions and learn more. Good habits make your circuits last longer.

FAQ

What is the most important thing to check when choosing a relay contact form?

You should match the relay contact form to your circuit's needs. Look at voltage, current, and how often you switch. Always read the datasheet before you buy.

How do you keep relay contacts clean?

You can clean contacts with a soft brush or special cleaner. Check contacts often for dust or rust. Clean contacts help your circuit work better and last longer.

Why does my relay make clicking sounds?

Relays click when contacts open or close. If you hear extra clicks, you might have contact bounce. You can fix this by using a debounce circuit or picking a relay with low bounce.

Can you use the same relay for both power and signal circuits?

You should not use the same relay contacts for power and signal. Power loads can wear out contacts fast. Use separate relays or contacts for each job.
