Relay coil voltage range and selection guide

To pick the right relay coil voltage, you must know your control circuit's voltage. Make sure the relay coil voltage matches this number. This helps stop mistakes and keeps things safe. Look at voltage ranges and tolerances because they change how well your relay works. You also need to check technical details like pickup and dropout voltages and how much power the relay needs.

Key Takeaways

Make sure the relay coil voltage matches your control circuit voltage. This helps keep things safe and working well.

Look at the relay's datasheet for key details like pickup and dropout voltages. Do this before you choose a relay.

Think about things like temperature and humidity. These can change how the relay works and how long it lasts.

Use a checklist so you do not make common mistakes when picking a relay. This helps make sure all the details fit your project.

Test the relay in real-life situations to check if it works right. This helps stop problems when you use it.

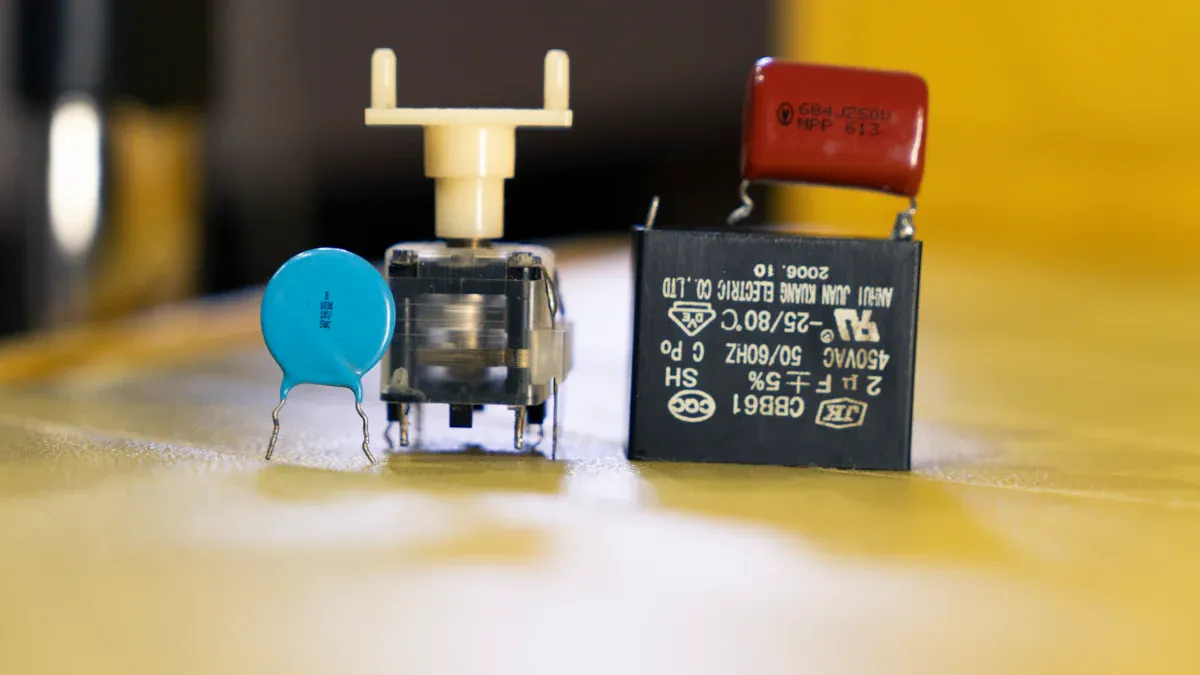

Relay coil voltage

What it means

A relay coil is a wire wrapped in a loop. When you put voltage on it, it makes a magnetic field. This field moves the armature inside the relay. The armature opens or closes the relay's contacts. The voltage you use for the relay coil is called coil voltage. You can find this number on the relay's label or datasheet.

Here is a table to help you learn some key words about relay coil voltage:

When current goes through the relay coil, it makes a magnetic field. This field pulls the armature and moves the contacts. This lets you control electricity in other parts of your circuit.

Why it matters

Picking the right relay coil voltage keeps your project safe and working well. If you use the wrong voltage, the relay might not work right. Electromechanical relays need the coil's magnetic field to move the contacts. The field's strength comes from the voltage you give the coil. If the voltage is too low, the relay may not turn on. If the voltage is too high, the coil could get damaged or not last as long.

You should always use a relay coil voltage that matches your control circuit's voltage. Here are some reasons why this is needed:

You stop the relay from getting too hot and keep it working well.

You stop the relay from failing by matching the coil voltage to your circuit.

You make sure the relay works with your power supply.

The relay contacts' materials and design also depend on the coil voltage. This can change how long the relay lasts and how well it works in your system. Picking the right relay coil voltage helps your circuit work safely and smoothly.

Voltage ranges

DC relay coil voltages

You will find DC relay coil voltages in many control systems. These voltages usually range from 3V up to 240V. Most DC relays work best when you keep the voltage within 80% to 110% of the rated value. If you use a voltage outside this range, the relay coil may not last as long. You can check the table below to see some typical DC and AC voltage codes and values:

You should always check the relay's datasheet for the exact voltage rating. The part number may show the coil voltage, but the datasheet gives you the full details.

AC relay coil voltages

AC relay coils are common in homes and factories. You will see standard voltages like 120V and 220V. These values help you match the relay to your power supply. Most AC relays work well between 85% and 110% of their rated voltage. If you use a voltage outside this range, the relay may not work reliably. Here are some common AC coil contactors you might use:

120V coil contactors

220V coil contactors

You should test the relay over its full voltage range to make sure it works every time.

Common values

You will see some relay coil voltages more often than others. The table below shows popular values and where you might use them:

You can identify the voltage rating by looking at the relay's markings or checking the datasheet. Different models may have different coil characteristics, so always confirm before you choose.

Tip: Always use the relay coil within its rated voltage range. This keeps your system safe and helps the relay last longer.

Selection factors

Application needs

First, think about what your project needs. Every project is different. For example, cars need relays that work in hot and cold places. You should check many things:

Coil rated voltage

Coil power use

Action voltage

Release voltage

Maximum current

Coil resistance

Coil temperature rise

Ambient temperature

If you use a relay in a car, it can get very hot. This heat can change how the relay works. In places like the engine, high heat can make relay parts weak or break. Pick a relay coil that can handle high heat.

Note: Automotive relays usually release at about 10% of the rated voltage. If you want to use more than 130% of the rated voltage, ask the relay maker for help.

Control voltage

The relay coil voltage must match your control circuit. If the voltage is too low, the relay may not turn on. If the voltage is too high, the coil may break. Always check pickup and dropout voltages to make sure it works.

Think about power use too. Some relays need more power. If you use a transistor, pick a sensitive relay to save energy. Make sure the relay coil gets enough voltage so the contacts do not chatter. Add clamp diodes with more than twice the supply voltage to protect your circuit. Test your relay at different voltages to make sure it works.

Turn on Voltage (Max): 9VDC

Max Coil Voltage: 20.4VDC (depends on temperature)

Indeterminate Range: 1.2VDC to 9VDC (not safe)

Load type

You need to know what load your relay will control. The maximum switching voltage is the highest voltage for the relay contacts. If you go over this, you may see sparks. Sparks can hurt the contacts and break the relay. Sometimes, your system's switching voltage is lower because of things like capacitance. Always check both the relay specs and your system needs.

Environment

Temperature and humidity can change how your relay works. When it gets hotter, coil resistance goes up. This means the pickup voltage goes up too. For example, at 20°C, a relay with 90 Ohms needs 6.5 volts to turn on. At 105°C, resistance is 120.1 Ohms, and pickup voltage is 8.67 volts. Coil design, insulation, and ambient conditions all change how the relay works in heat.

Temperature changes coil resistance and pickup voltage.

Coil design and insulation affect heat resistance.

High humidity can cause rust or insulation problems.

Tip: Always check relay coil specs for temperature and humidity in your project.

Safety

Safety is very important when you pick a relay coil. You must follow safety rules to keep your system safe. Look at the table to see what to check:

Pick coil specs that fit your design. If you pick wrong, the coil can burn out and your system can fail. Always check power supply voltage and frequency before you pick an AC relay coil.

Selection steps

Check control voltage

First, make sure your control voltage matches the relay coil. If you skip this, the relay might not work or could break. Here are some steps to check control voltage:

Use a multimeter to measure coil resistance. Compare it to the nominal resistance in the relay's datasheet.

Set the multimeter to Ohmmeter mode. Put the probes on both coil terminals.

Write down the resistance you see. Check if it matches the datasheet.

Power the relay. Use the multimeter to check voltage at the coil terminals. Make sure the power supply gives the right voltage.

If your readings do not match the datasheet, check your wiring or power supply. Always confirm the voltage before you move on.

Assess load

Next, look at the load your relay will control. The load could be a lamp, motor, or another device. You need to know how much current and voltage the load uses. This helps you pick a relay that can handle the job. If your load uses a lot of current, pick a relay with contacts rated for that current. If your load is inductive, like a motor, you may need extra protection like a flyback diode. Always match the relay's contact ratings to your load.

Review specs

Always look at the relay's datasheet before you choose. The datasheet gives you important details about how the relay works. Here is a table with key specs to check:

Check each value in the table. Make sure your control circuit gives enough voltage and current. If you use a higher voltage coil, it may save energy because it uses less current.

Confirm safety margin

You must check for a safety margin to keep your relay safe, especially in tough conditions. Think about the highest temperature your relay coil will reach when running at its rated voltage and full load. Also, think about the highest temperature around the relay.

To figure out a safety margin when picking relay coil voltage, you need to think about the highest coil temperature at nominal coil voltage, maximum load, and maximum ambient temperature. This temperature should not go past the limits set by UL or CSA for the relay's insulation temperature class. If relays have heavy loads or are near hot parts, expect a higher coil temperature rise and plan for it. Test the final assembly under maximum load and heat to make sure the coil temperature rise stays safe.

If you expect high temperatures or heavy loads, pick a relay with a higher temperature rating or add cooling. Always test your relay in real conditions before using it.

Practical tips

Mistakes to avoid

When you choose a relay coil voltage, you can make mistakes that affect your project. You need to watch out for these common errors:

You might pick a relay that does not match your application's needs. This can cause poor performance or even safety problems.

You may ignore the environment where the relay will work. High heat, humidity, or dust can make the relay fail early.

You could forget to think about future changes or upgrades. If your system grows, you may need a relay with different specs. Not planning ahead can cost you time and money.

Understanding your application helps you avoid these mistakes. Data sheets give you important details about each relay. You should remember that data sheets do not cover every factor. You need to look at your whole system and think about how the relay will work in real life.

Tip: Always check the relay's specs against your project's needs. Think about where you will use the relay and how your system might change.

Quick checklist

You can use this checklist to help you pick the right relay coil voltage:

Check your control circuit voltage. Make sure it matches the relay coil voltage.

Review the relay's data sheet for pickup and dropout voltages.

Look at the coil's power use and make sure your power supply can handle it.

Think about the environment. Check for heat, moisture, and dust.

Confirm the relay's contact ratings match your load.

Plan for future upgrades or changes in your system.

Test the relay in your actual setup before final installation.

If you follow this checklist, you can avoid common mistakes. You will help your project run safely and reliably.

You can pick the right relay coil voltage by using some easy steps. First, make sure the coil voltage matches your control power. Check that it is equal to or higher than your load voltage. Always look at pickup and dropout voltages. Heat and resistance can change how the relay works. Use a checklist and look at datasheets. This helps you avoid problems with too little or too much voltage.

For more information, you can read guides like "Selection Guide for Power Relays Over 2 A" or "Understanding Relay Coil Voltage Specifications.

FAQ

What happens if you use the wrong relay coil voltage?

If you use the wrong coil voltage, the relay may not turn on or could overheat. This can cause your circuit to fail or even damage the relay. Always match the coil voltage to your control circuit.

How do you find the coil voltage on a relay?

You can find the coil voltage printed on the relay case or in the datasheet. Look for numbers like "12VDC" or "24VAC." If you cannot find it, check the part number and search online.

Can you use a higher voltage relay coil in a lower voltage circuit?

No, you should not do this. The relay will not activate if the voltage is too low. Always use a relay with a coil voltage that matches your control circuit for safe and reliable operation.

Why do relays have different voltage ranges for AC and DC?

AC and DC coils work differently. AC coils handle changing currents, so they need a wider voltage range. DC coils use steady current and have tighter voltage limits. Always check the datasheet for the correct range.

What is pickup and dropout voltage?

Pickup voltage is the lowest voltage that turns the relay on. Dropout voltage is the highest voltage that turns the relay off. You can find these values in the relay's datasheet. They help you know when the relay will work.
