Electrical safety components of electric vehicle charging stations

You can see many electrical safety components in EV charging stations. These components help keep you and your car safe from electrical problems. NTC thermistors stop sudden jumps in power. Electrical ground monitors watch the current and turn off power if something is wrong. In-cable control boxes make sure voltage stays safe. Battery management systems stop the battery from getting too hot. Residual current devices turn off power to stop shocks and fires. Knowing about these features helps you charge your EV safely.

Safety Component	Function
NTC thermistors	Stop sudden strong currents when charging your EV.
Electrical ground monitor	Watches current and turns off power if it finds a problem.
In-cable control box	Controls voltage between the charger and EV for safety.
Battery management system (BMS)	Keeps charging safe and stops the battery from overheating.
Residual Current Device (RCD)	Checks currents and turns off power to stop shocks and fires.

Key Takeaways

Learn about the main safety parts of EV charging stations, like NTC thermistors and residual current devices, to keep charging safe. Check your charging station often for any damage, especially on cables and weatherproof seals, to stop electrical dangers. Make sure your charging station has surge protection to protect it from voltage spikes caused by lightning or problems with the power grid. Know where the emergency shut-off switches are and make sure you can reach them quickly if there is danger. Follow the maintenance rules each season to find and fix problems before they get worse.

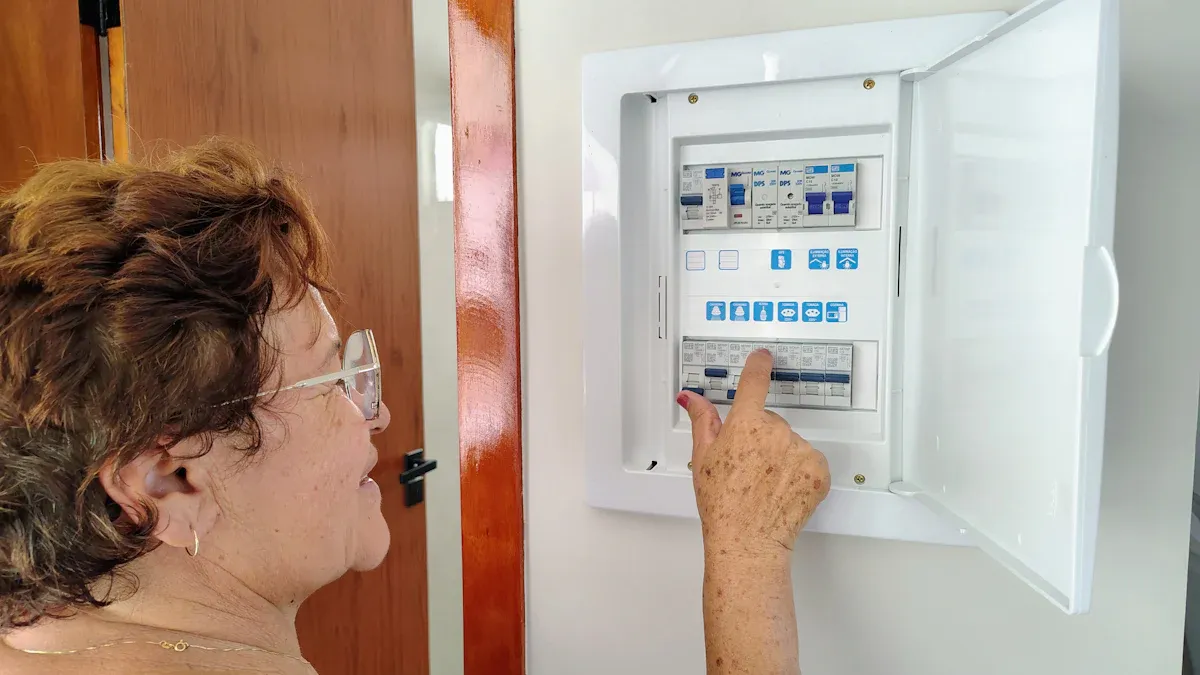

Electrical Safety Components Overview

Circuit Protection Devices

Electric vehicle charging stations have many circuit protection devices. These devices help stop electrical dangers and keep people safe. The most common ones are circuit breakers, fuses, and surge protectors. Circuit breakers turn off electricity if the current gets too high. Fuses melt and break the circuit when there is too much current. Surge protectors keep electronics safe from sudden voltage spikes.

AC Power Line Surge Protectors (SPD): These keep your charging station safe from power surges. Models like PT80-120T-BB and 125M-120T-A last a long time. They come with a 20-year warranty and free replacement modules.

Circuit Breakers: These shut off power if they find dangerous current levels.

Fuses: These stop electricity during overloads in a simple way.

These electrical safety components help stop fires, damage, and injuries. Surge protectors are very important because power surges happen often. You see them in AC and DC charging stations. They protect against lightning and problems with the power grid.

Tip: Always check that circuit breakers and surge protectors work before using a charging station. These electrical safety components are your first defense.

Ground Fault Protection

Ground fault protection helps keep you safe from electric shock. Charging stations use Ground Fault Circuit Interrupters (GFCI), Residual Current Devices (RCD), and Charge Circuit Interrupting Devices (CCID). These electrical safety components watch the flow of electricity. They turn off power if they find a leak or fault.

Device/Feature	Description
GFCI	Finds ground faults and shuts off power to stop shock.
RCD	Watches for current leaks but may not work well with high-frequency currents from EV chargers.
CCID	Stops charging if it finds unsafe conditions.

Sometimes, RCDs do not work well with high-frequency leaks from EV charging stations. Tests show RCDs may not protect you from shock in some cases, especially with mode 1 connections. Because of this, better fault detection systems are needed. These systems quickly find electrical problems and shut down the station to keep you safe.

Feature	Description
Fault Detection Mechanisms	Find electrical problems right away.
Residual Current Protection	Watch current leaks to protect people and vehicles.
Shock Hazard Protection	Use sensors to stop electric shock.
Component Testing Criteria	Make sure connectors and cables are very safe.
Impact on Product Design	Help builders make charging stations that last a long time.

Surge Protection

Surge protection is a very important electrical safety component in EV charging stations. Power surges can hurt your charger and your car. Surges come from lightning, problems with the grid, or switching. AC charging stations get many surges because power changes often. DC charging stations need strong surge protection because they use high power and can get badly damaged.

Surge protection systems are the first defense. They send extra voltage away from important parts.

Without surge protection, one lightning strike or grid problem can ruin your charging station.

Experts say you should use layered surge protection. Put a whole-house surge protector at the main board. Surge protection inside the EV charger adds more safety.

Type 1 Surge Protective Devices (SPD) at the main panel take in and send away strong lightning surges. These devices lower the voltage that goes into your charging station.

⚡ Note: Power surges cause billions of dollars in damage every year. You keep your charging station safe by making sure it has strong surge protection.

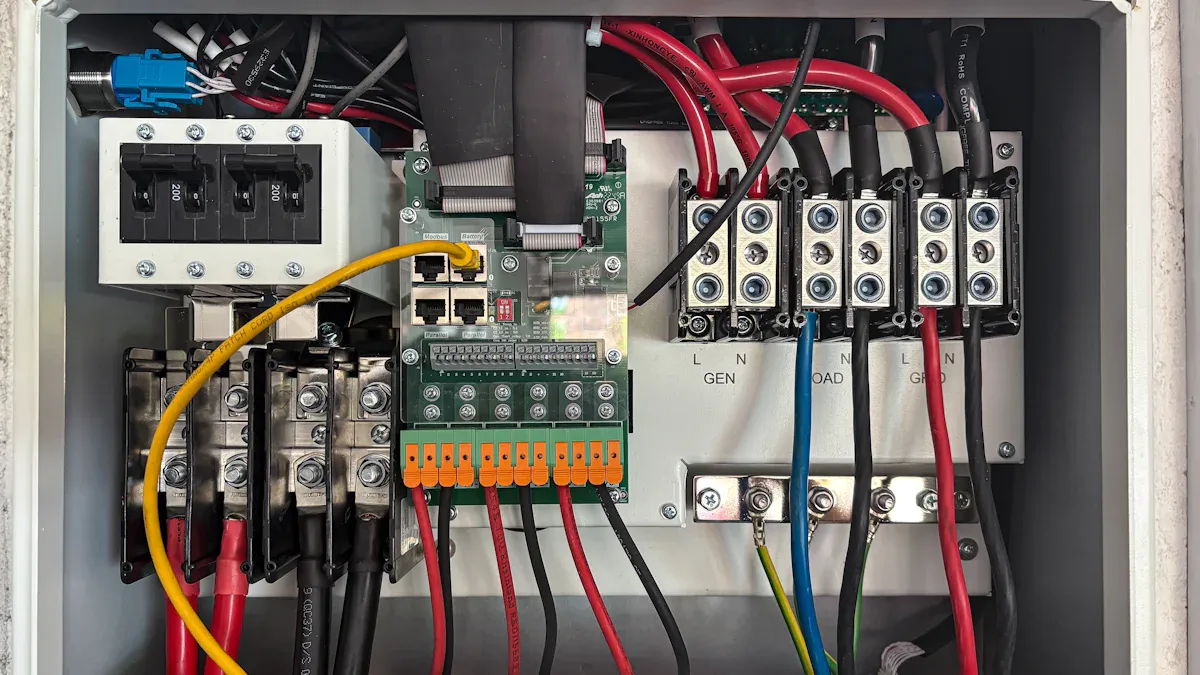

Advanced Protection Features

Overcurrent and Overvoltage Protection

Your EV charging station needs strong protection. Too much current or high voltage can be dangerous. Overcurrent protection uses sensors and special devices. Fuses and circuit breakers watch the flow of current. If the current gets too high, they turn off the power fast. This keeps your car and charger safe from harm.

Overvoltage protection checks the voltage all the time. If the voltage goes over the safe limit, charging stops. This keeps your battery safe from damage. Most problems happen because parts get too hot or voltage jumps suddenly. Managing these risks is very important for safe charging.

Tip: Make sure your charging station has both overcurrent and overvoltage protection. These features are needed by safety rules like IEC 61851 and UL2231.

Standard	Description
ISO 15118	Sets rules for how your EV talks to the charging station.
IEC 61851	Focuses on safety and stops shocks and overcurrent.
SAE J1772	Tells which connectors are safe for charging.
UL2231	Covers how to find and stop leakage current.

Thermal and Temperature Controls

Heat can cause trouble in EV charging stations. High temperatures make things work worse and can start fires. Charging stations use sensors to check heat at important places. These places include the charge handle and inside the battery pack. If sensors find too much heat, the system slows down charging or turns off.

Some stations use fire barriers and special systems to stop fires. New stations may use smart cameras to find hot spots early.

Temperature sensors show updates right away.

The system shuts down if it gets too hot.

Fire barriers and safety systems help protect you.

🚨 Alert: If your charging station feels hot, stop charging. Ask a professional to check it.

Short Circuit Protection

Short circuits happen when wires touch or parts break. These problems can cause big bursts of electricity. Your charging station uses fast fuses and ground-fault protection. Fast fuses break the circuit quickly to protect parts. Ground-fault protection helps stop electric shocks, especially outside.

Many stations use transient suppressors like metal oxide varistors. These protect against sudden voltage spikes. As more people use EVs, strong short circuit protection is needed. Modern charging stations use advanced electrical safety components to keep you and your car safe.

Emergency and Physical Safety

Emergency Shut-Off Switches

It is important to stop power fast if there is danger. Emergency shut-off switches let you turn off electricity right away. Use them if you see smoke, sparks, or someone gets hurt. These switches keep you, your car, and helpers safe. Many places make emergency stop buttons a rule. Having these buttons shows you care about safety.

Every EVCS must have an emergency shut-off switch outside. It should be easy to see and reach for people and first responders.

Regulation	Description
NEC 625.43	Needs a disconnect for equipment over 60 amperes or 150 volts to ground. This rule covers many Level 2 chargers and all DC fast chargers.

Fire Safety Measures

Fire safety is very important at charging stations. You should see class C fire extinguishers close by. These put out electrical fires. National rules say parking garages need sprinkler systems. They also want strong fire protection for EV charging areas. Early warning systems and good setup help lower fire risks.

Standard	Requirement
NFPA 13 (2022)	Parking garages are now Ordinary Hazard Group 2 because of higher fire risk.
NFPA 70 (2021)	Article 625 gives rules for EV charging stations. Article 220 says how to check power needs for EVSE.
NFPA 88A (2023)	All parking garages must have sprinkler systems, even open ones.
International Building Code (IBC) (2021)	Garages over 48,000 square feet need sprinklers.
FM Global Data Sheet 3-26	Parking garages are now Hazard Category 3.
UL 2202	Sets safety rules for EV charging, including fire tests.

In 2019, London had 54 electric car fires but 1898 petrol and diesel car fires.

Fire safety steps like early warnings and good setup are key to lowering risks.

Weatherproof and Tamper-Resistant Design

Charging stations must handle bad weather and people trying to break them. Strong covers protect the equipment inside. Good designs use gaskets, tight seams, and steel parts. These keep out water, dust, and stop tampering. IK10 covers can take hard hits and still work. IP65/IP66 means the station keeps out dust and water.

Mechanical Design Strategies	Features
Gasket-sealed enclosures	One-piece molded enclosures
Overlapping seams	Tamper-resistant assembly
Protected contact zones	Drainage channels
IP-rated cable glands	Hydrophobic vents
Stainless steel hardware	N/A

The station lasts a long time without water damage.

Outdoor repairs cost less.

People trust public chargers more.

Always check for these safety features before you use a charging station. They help keep you safe and make sure the charger works well for a long time.

Compliance and Maintenance

Certification Standards

You must make sure your EV charging station follows safety rules. Certification shows the station's electrical safety components work right. Groups like UL, IEC, and SAE make these rules. Each rule looks at a different part of the charging system, like the battery charger or charging cable.

Here is a table with some well-known standards:

Standard Type	Standards
On-Board Battery Chargers	SAE J2894, UL 2202, IEC 61851
Charging Inlet	SAE J1772, UL 2251, CHAdeMO, IEC 62196
Charging Station/Cordsets	SAE J2293, UL Subject 2594, IEC/EN 61851 series
DC Quick Chargers	SAE J1772, UL 2202, CHAdeMO, IEC 61851
Personnel Protection Circuitry	UL 2231-1/-2, CSA 22.2#281.1/.2, IEC 61540, IEC 62752, IEC 61008, IEC 61009

To get certified, you follow steps one by one:

Find the right standards for your area.

Get technical papers, like diagrams and product details.

Pick a trusted lab to test your product.

Send your application, samples, and papers.

The lab checks your product for safety and how it works.

Fix any problems the lab finds.

Look at the lab's final report.

Get your certification when you pass all steps.

Tip: Always check for certification labels before you use or install a charging station. Certified stations help you feel safe.

Regular Inspection and Maintenance

You keep your charging station safe by checking it often. Regular checks help you find problems before they get worse. You should follow a plan for each season.

In winter, look for wire damage from snow or ice. Clean away any trash.

Test ground fault interrupters often, especially when it's cold.

In summer, watch for overheating or wires that show.

Tighten connections and check cables all year.

Common maintenance problems include:

Maintenance Issue	Description
Power supply issues	Power loss from bad setup or outside things.
Faulty DC contactors	Old parts stop power from reaching your car.
Circuit board damage	Wetness or dust can break the charger's inside parts.
Firmware bugs	Glitches can freeze screens or crash the system.
Connectivity issues	Weak signals can stop charging or user login.
Overheating	High heat or heavy use can hurt parts and start fires.
Grounding and insulation	Bad grounding can cause shocks or short circuits.
Charging cable wear	Worn cables slow charging and can be dangerous.

Regular checks help you find these problems early. If you see worn cables or feel heat, stop using the station and call an expert. Keeping up with maintenance keeps you and your EV safe.

You stay safe when you look for electrical safety components at charging stations. These features help stop surges, shocks, and fires. Always look for safety labels that are easy to see. Make sure emergency shut-off switches work. Before you charge, use this checklist:

Look at cables and weatherproof seals.

Check if the station connects to its network.

See if there are software updates.

Make sure safety warnings are easy to see.

Doing regular checks and following safety rules helps keep charging safe and dependable.

FAQ

What should you check before using an EV charging station?

You should look for safety labels, check cables for damage, and make sure the emergency shut-off switch works. Always check for weatherproof covers and clear warning signs.

Why do EV charging stations need surge protection?

Surge protection keeps your charger and car safe from sudden voltage spikes. These spikes can come from lightning or power grid problems. Surge protectors help prevent fires and equipment damage.

How often should you inspect your charging station?

You should inspect your charging station every season. Look for worn cables, loose parts, and signs of overheating. Regular checks help you find problems early and keep charging safe.

What does a ground fault circuit interrupter (GFCI) do?

A GFCI watches the flow of electricity. If it finds a leak or fault, it shuts off power fast. This helps protect you from electric shock.

Can you use an EV charging station in the rain?

Yes, you can use most EV charging stations in the rain. Weatherproof designs and strong covers keep water out. Always check for an IP rating like IP65 or IP66 before charging outdoors.
