To test and check the contact load capacity of relay, you need to determine how much voltage and current the relay contacts can safely handle. Always review both the maximum and minimum ratings for the contact load capacity of relay. Using an incorrect load can damage the relay or cause it to fail. Manufacturer specifications provide the most accurate information about the contact load capacity of relay, so you should read these details carefully before performing any tests.
Key Takeaways
Know what contact load capacity means for relays. It is the highest and lowest voltage and current a relay can safely handle.
Always look at the manufacturer's specifications before you test. This helps you use the relay the right way and keeps it from breaking.
Use the correct tools for testing, like a multimeter and relay test set. The right equipment lets you check voltage and current in a safe way.
Follow safety rules when you test. Wear gloves and goggles. Make sure your work area is clean and dry so you do not get hurt.
Test relays often to find problems early. This helps your equipment stay safe and work well.

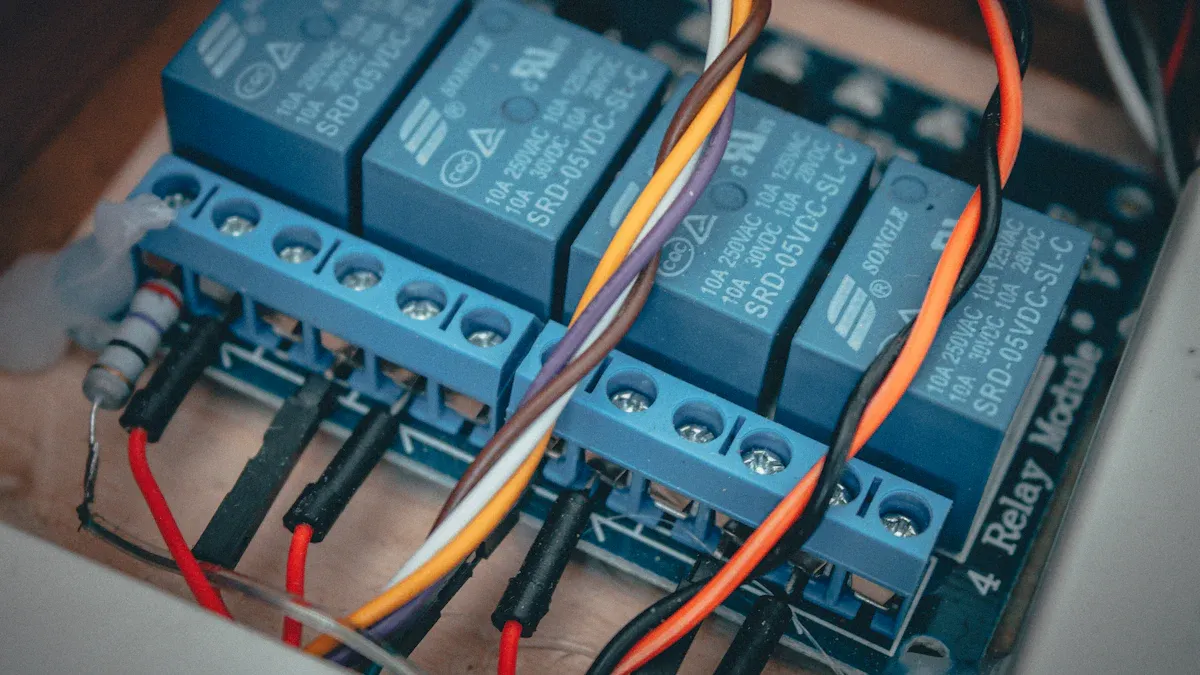

Contact Load Capacity of Relay

Definition
Before you test, you should know what the contact load capacity of relay means. This is the amount of electrical load the relay contacts can safely switch. The load has both voltage and current. If you use a relay with too much load, the contacts can get damaged or the relay can stop working. The contact load capacity of relay includes the highest and lowest voltage and current it can handle. Always make sure your relay matches the load in your circuit.
Maximum and Minimum Ratings
Each relay has a maximum and minimum rating for voltage and current. The maximum rating is the most voltage and current the relay can switch safely. The minimum rating is the least load needed for the relay to work well. If you go over the maximum, the contacts might stick together or burn. If you use less than the minimum, the relay may not switch right or the contacts might not work well after a while. Always check these ratings before you use a relay.
Tip: Never test a relay with a load higher than its maximum rating. This can cause permanent damage.
Manufacturer Specifications
You can find the contact load capacity of relay in the manufacturer's specification sheet. These sheets tell you important things, like:
Voltage ratings for safe use
Contact material, which affects how well the relay works and how long it lasts
Operating time, which shows how fast the relay turns on or off
Load ratings for different types of loads, like resistive or inductive
You should read these sheets carefully. Look for both the maximum and minimum ratings. Pay attention to the type of load, because a relay may handle different amounts for resistive and inductive loads. Using the right relay for your project helps you avoid problems and keeps your circuit safe.
Preparing for Testing
Equipment Needed
You need the right tools before you test. These tools help you check the contact load capacity of relay safely. There are many kinds of test equipment. Each tool does something different. Here is a table that lists some common tools and what they do:
|
Tool/Instrument |
Description |
|---|---|
|
High-current test set |
Uses big transformers to lower line voltage and give high current. |
|
Relay test set |
Has many sources to test solid-state and multi-function protection devices. |
|
Circuit breaker tester |
Connects to high-current test sets for checking ground fault and other current relays. |
You might also need a multimeter, test leads, and a load bank. These help you measure voltage, current, and resistance. Always make sure your tools match the ratings for your relay.
Safety Precautions
Testing relays can be risky if you do not follow safety rules. You should always wear safety gear like gloves and goggles. Make sure your work area is dry and clean. Never touch wires or terminals that have power. Many countries have safety rules for electrical testing. Here is a table with some main standards:
|
Country |
Safety Standard |
|---|---|
|
Japan |
The Electrical Appliance and Material Control Law |
|
USA |
UL |
|
Canada |
CSA |
|
Germany |
VDE |
|
North Europe |
SEMKO |
|
Great Britain |
BS |
You should follow the safety standard for your country. These rules help keep you safe from electric shock and fire. Always turn off power before you connect or disconnect anything. If you are not sure what to do, ask an expert for help.
⚠️ Tip: Always check all connections before you start. This easy step can stop accidents and keep your relay safe while testing.
Testing Procedures

Resistive Load Test
Start by testing the relay with a resistive load. This load is simple to test. It does not make extra electrical spikes. Here are the steps for a resistive load test:
Use a digital output card, like the NI9472, and a transistor drive. These power the relay coil. Set the coil to turn on and off at different times.
Count how many times the relay switches. Try to reach more than 100,000 cycles for a full test.
Every 100 cycles, keep the relay contacts closed. Disconnect the main load circuit, like 15A at 30V. Use a four-wire method with a 6V supply and 1A current to measure contact resistance.
Write down the resistance value. Turn off the measurement circuit. Reconnect the load circuit. Run another 100 cycles.
Repeat these steps until the relay fails or you finish testing. This helps you collect lots of data about how the contacts work over time.
Tip: Always check the relay's temperature during testing. High heat can hurt the contacts.
Inductive Load Test
Inductive loads, like motors or solenoids, are harder on relays. They make voltage spikes when turned off. These spikes can cause arcing and wear out the contacts faster. When testing a relay with an inductive load, watch for these risks:
|
Challenge/Risk |
Description |
|---|---|
|
Mechanical Failures |
The relay's spring parts can get weak from repeated use. |
|
Environmental Stress Factors |
High heat or humidity can make the coil wear out or cause insulation to fail. |
|
Electrical Issues |
Inductive loads can create strong voltage spikes, leading to arcing and faster contact wear. |
To test with an inductive load:
Connect the relay to a load like a small motor or relay coil.
Switch the relay on and off many times, just like in the resistive test.
Look for signs of arcing or burning on the contacts.
Measure the contact resistance at regular times.
Write down any changes in performance or signs of failure.
⚠️ Note: Inductive loads can make relays wear out faster. Always use a snubber or flyback diode to protect the contacts during testing.
Capacitive Load Test
Capacitive loads, like big capacitors or long cables, can make high inrush currents when switched on. These currents can damage relay contacts quickly. Here are some things you might see during a capacitive load test:
You may see a sharp jump in inrush current. For example, a 1-ohm NTC thermistor can raise the peak inrush current by 36%. A 5-ohm NTC can raise it by 58%.
The relay contacts can wear out faster. In some tests, contacts showed heavy wear and even stuck together after 26,000 cycles without an NTC device.
Using an NTC thermistor can help. It cuts down material transfer by 40-50% and lowers the risk of the "cone and crater" effect. This helps the relay last longer.
To test with a capacitive load:
Connect the relay to a circuit with a big capacitor.
Switch the relay on and off for many cycles.
Watch for signs of contact wear or sticking.
Try using an NTC thermistor in the circuit to see if it helps protect the contacts.
💡 Tip: Always watch the relay for heat and strange sounds during this test.
Calculating Load Limits
You need to know the total load your relay can handle. This is called the load limit. You can find it by multiplying voltage by current. Here is a table to help you:
|
Voltage (V) |
Current (A) |
Power (W) |
|---|---|---|
|
AC 250 |
5 |
1250 |
|
DC 24 |
5 |
120 |
For example, if your relay switches 250V AC at 5A, the total load is 1250 watts. If you use 24V DC at 5A, the load is 120 watts. Never let your test go above the rated values from the manufacturer. Going over the contact load capacity of relay can make it fail or become unsafe.
Note: Always check the manufacturer's datasheet for the right ratings before you start any test.
Additional Testing Tips
Different types of relays need different testing methods. Here is a table that compares solid-state relays (SSR) and electromechanical relays (EMR):
|
Feature |
Solid State Relay (SSR) |
Electromechanical Relay (EMR) |
|---|---|---|
|
Switching Method |
Uses semiconductors and optos |
Uses a magnetic coil and contacts |
|
Moving Parts |
None |
Has moving parts |
|
Switching Speed |
Very fast |
Slower |
|
Mechanical Wear |
None |
Can wear out |
|
Electrical Noise |
Low |
Can be noisy |
|
Operation Life |
Very long |
Shorter |
You should follow industry standards for testing. Here are some important ones:
|
Standard Organization |
Standard Series |
Description |
|---|---|---|
|
IEEE |
C37 |
Covers performance criteria, test plans, and testing techniques for relays. |
|
IEC |
60255 |
Provides guidelines for testing electrical relays and relays with built-in test capabilities. |
Testing should happen at regular times. Here is a chart that shows how often you should test relays in factories:
Visual inspection: every 1 to 2 years
Secondary injection testing: every 1 to 3 years
Primary injection testing: every 3 to 5 years or after big changes
Always test after installation, setting changes, or faults
Reminder: Regular testing helps you find problems early and keeps your equipment safe.
Results and Issues
Interpreting Test Results
After you finish testing, look at your results carefully. Good results mean your relay works as it should. Bad results can show you there is a problem. You can use a table to see what is normal and what is not:
|
Test Aspect |
Working Relay Result |
Faulty Relay Result |
|---|---|---|
|
Coil Resistance (Ohms) |
Between 40 and 120 Ohms (normal coil) |
Outside 40-120 Ohms (indicates fault) |
|
Continuity between COM and NC |
Continuity present when relay is de-energized |
Continuity absent or inconsistent |
|
Continuity between COM and NO |
Continuity present when relay is energized |
Continuity absent or inconsistent |
You should also check event records and reports. Fault event records from intelligent electronic devices (IEDs) show how your relay worked during a problem. If you compare the measured current and the simulated current, you can find mistakes in relay settings or wiring. Looking at fault data helps you find and fix setup errors before they cause trouble.
If you want to check if relay software is reliable, you can use fault injection testing. This test shows how often the software fails when stressed. It is important for keeping your system safe.
📝 Tip: Always write down your test results. This helps you see how your relay works over time and spot problems early.
Signs of Overload or Failure
You need to look for signs that your relay is overloaded or not working. Some signs are burned contacts, broken control circuits, and thermal element failures. The table below shows what to watch for:
|
Sign of Overload/Failure |
Description |
|---|---|
|
Malfunctioning control circuits |
The control circuit does not work because of bad adjustment or burned contacts. |
|
Burned contacts |
Contacts are burned or the moving rod is damaged. You may need to fix or replace the relay. |
|
Thermal element failures |
The thermal element burns out from too much current or using it too much in a short time. |
You can check for these problems by:
Testing the normally open contact (97 to 98) for an open circuit ("OL" on your meter).
Making sure the normally closed contact (95 to 96) stays closed (0 ohms).
Pressing the test button to make an overload and watching how the relay acts.
If you see any of these problems, you should:
Turn off the power safely and use lockout/tagout steps.
Make sure the power is off with a voltage tester.
Check the relay settings and compare them to your motor's Full Load Amperage (FLA).
Change the settings if needed, usually to 110%–125% of the FLA.
If you do not check the contact load capacity of relay, it can get too hot, wear out, weld together, or even fail. Sometimes relays look fine but do not work during a fault. This can put your equipment and safety at risk. Testing often and fixing problems quickly helps keep your system working well.
⚡ Note: Always look for dirt, rust, or wear on relays. Clean them gently and test them often to find problems early.
If you follow both the maximum and minimum contact load ratings, your relay and equipment stay safe. The maximum rating stops damage. The minimum rating helps the relay work every time.
If you use the right ratings, your relay will last longer and work well.
To test safely and correctly, always:
Wear safety gear like gloves and glasses
Follow safety rules and check for risks
Pick the right tools for testing
Look at the manufacturer's data before you begin. When you use good habits, you avoid mistakes and keep your system working.
FAQ
What happens if you exceed a relay's maximum contact load?
If you exceed the maximum load, the relay contacts can burn, weld together, or fail. This can cause your circuit to stop working. Always check the manufacturer's ratings before testing or using a relay.
How do you know if a relay contact is worn out?
You may see pitting, discoloration, or burning on the contacts. The relay might not switch properly. You can use a multimeter to check for high resistance or poor continuity.
Can you test a relay without removing it from the circuit?
Yes, you can test basic functions with a multimeter while the relay is in place. For full load testing, you should remove the relay to avoid damaging other parts of your circuit.
Why do relays have minimum load ratings?
Relays need a minimum load to keep contacts clean and reliable. If you use less than the minimum, contacts may not close fully or may build up dirt, causing unreliable switching.
