What is the operating temperature range for industrial relays and why it matters?

You need to know the operating temperature range for industrial relays. This helps keep them safe and working well. Most electromechanical relays work from -40°C to 85°C. Solid state relays can work from -30°C to 100°C. Reed relays usually work from -40°C to 85°C. Some special reed relays can go up to 150°C. Industry standards like NEMA and UL set these limits. They use relay type and insulation class to decide.

High temperatures make the relay coil more resistant. This change can hurt how the relay works. It may cause the relay to stop working or wear out faster. When you pick a relay, think about the room temperature and the relay's rated range.

Key Takeaways

Industrial relays work best in certain temperatures. For example, electromechanical relays work from -40°C to 85°C. This helps them stay safe and reliable.

High temperatures can make the coil resistance go up. This can make the relay not last as long. It can also cause problems or make the relay stop working.

Always look at the relay's datasheet. Make sure the temperature range fits your environment. This helps you avoid issues.

Use cooling systems like fans or heat sinks. These protect relays in hot places. They help relays last longer.

Check relays often and keep the area clean. Remove dust and moisture. This helps relays work well and stay safe.

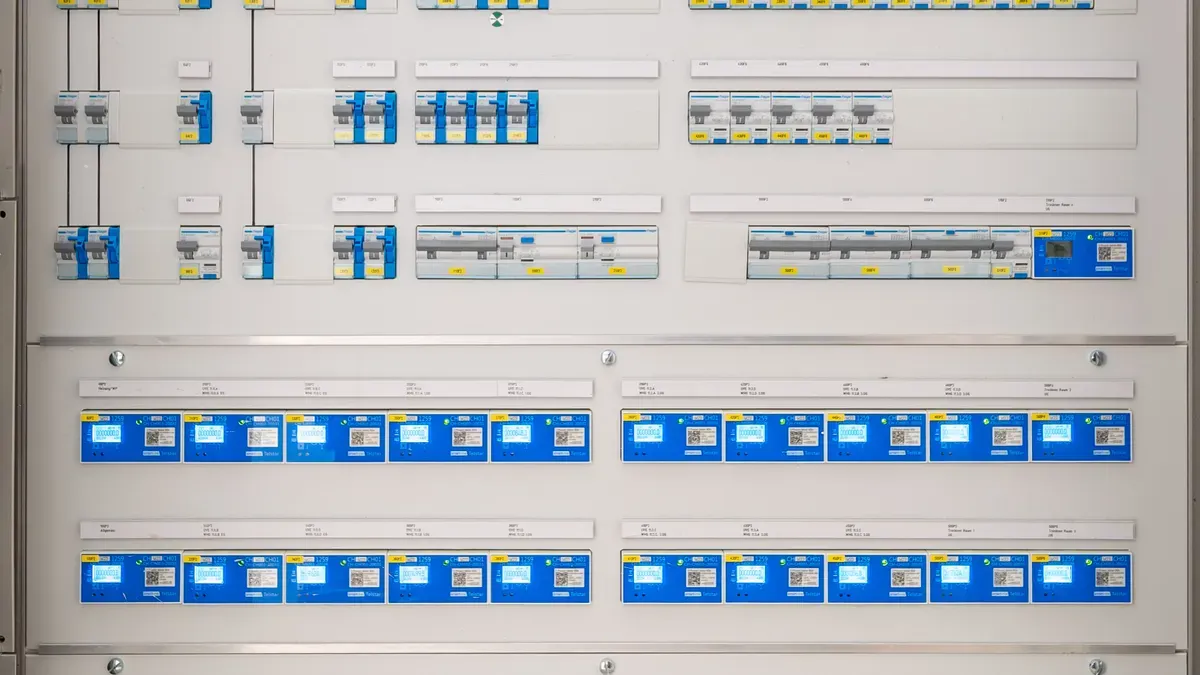

Operating Temperature Range for Industrial Relays

What Does Operating Temperature Range Mean?

It is important to know what the operating temperature range is for a relay. This range tells you the lowest and highest temperatures where the relay can work safely. Manufacturers test relays to make sure they work in this range. Other groups check and approve these tests. The operating temperature range shows if the relay will work well in your area. Most safety relays can handle a wide range of temperatures. This helps them last in tough places. You should look at the temperature where you want to put the relay. If it gets too hot, you can use a cooling system. This helps protect the relay and makes it last longer.

Typical Ranges by Relay Type

Different types of relays have their own temperature ranges. You can see these in the table below:

Electromechanical relays work in most factories. Reed relays can handle both cold and hot places. Some reed relays can work at even higher temperatures. Solid state relays can work in a bigger range. Enhanced industrial relays can handle very hard conditions. You should pick a relay that matches your area's temperature. This helps stop problems and keeps the relay working well.

Industry Standards for Temperature

Industry standards give rules for relay temperature ranges. You can find these rules in offices, factories, and the military. Groups like NEMA and UL make these rules. They look at relay type and insulation class. Military rules need relays to work in very hot or cold places. Office rules are for normal building temperatures. Factory rules are for places with machines and heat. You should check these rules before picking a relay. This helps you choose the right relay for your job. Following these rules keeps your relay safe and working well.

Tip: Always check the relay's datasheet and compare it to your area's temperature. This helps you stop failures and keeps your system working right.

Why Temperature Matters for Relays

Effects on Performance

It is important to know how temperature changes affect relays. When the air gets warmer, the relay coil's resistance goes up. For each degree Celsius, resistance rises by about 0.4%. This means the relay might need more voltage to work. If you do not adjust for this, the relay may not turn on. The coil can also get hot while it is working. If you do not control this heat, the relay contacts can wear out faster. In small spaces, the air can get much hotter than normal. This can hurt how the relay works both inside and out. To keep your relay working well, always check the temperature around it. Make sure it stays in the safe range.

Temperature changes the coil's resistance and can affect how the relay works.

If the relay heats itself up, the contacts can get damaged.

Hot air in small spaces can make the relay work worse.

Note: Always watch the temperature near your relay to keep it working right.

Reliability and Lifespan

How long a relay lasts depends on how you control its temperature. If you let it run close to its highest temperature, it will not last as long. For every 10°C above its safe range, the relay's life can drop by half. Solid-state relays are even more sensitive to heat. If the inside gets too hot, it can break early. You can use derating to help your relay last longer. This means you use the relay at less than its top load. For example, if a relay is made for 100A, you can use it at 80A. This keeps it cooler and helps it last longer.

Relays in hot places or used a lot need good heat control.

Check the highest air temperature and use derating charts to pick your relay.

Some relays lose power when hot, so check if yours can handle the heat.

Tip: Using a relay below its top rating helps stop overheating and makes it last longer.

Safety Implications

Temperature is not just about how well a relay works or how long it lasts. It also matters for safety. If you use a relay outside its safe temperature range, it can fail in a dangerous way. Makers do not test relays outside their safe range. So, you cannot know what will happen if you go past the limit. Safety checks for your devices must include the air temperature to stop problems. If one relay fails from heat, it can also hurt backup relays in the same system.

Using relays outside their safe temperature can cause dangerous problems.

Safety checks must include the safe temperature range.

High heat can make more than one relay fail at once.

Always follow the temperature ratings to keep your system safe and working well.

Factors Influencing Relay Temperature Range

Materials and Construction

When you pick a relay, look at what it is made of. The way it is built helps it work in hot or cold places. The right design lets the relay handle changes in temperature. This keeps it working well.

Relays that work in many temperatures do better in tough places.

Good ways to cool, like heat sinks or fans, help stop overheating.

Sealed relays keep out water in wet places and stop rust.

Dust can block parts and make the relay too hot, so dust-proof designs help.

You should always choose a relay that fits your job. This helps stop problems and keeps the relay working the same.

Coil Current and Power Dissipation

The coil current and power loss make heat inside the relay. You need to know how these things work.

The coil gets hot when you put voltage on it, which raises the relay's temperature.

The amount of copper wire, how thick the insulation is, and the bobbin material all change how hot it gets.

If you use the relay in still air and know the coil resistance, the heat goes up almost the same as the power used.

You should check these things to keep the relay cool and working well. This helps stop damage and keeps the relay working right.

Contact Resistance and Load

Contact resistance and load are important for how the relay handles heat. When you connect a relay to a load, too much power or a short can change the contacts. This makes the contact resistance go up. It can mean you need to fix the relay more or it might break. Hot air and wet air, plus the contact material and how tight it is, all change the contact resistance. Over time, high heat can make the relay work worse and slower. You need to watch these things to keep your relay safe and working well.

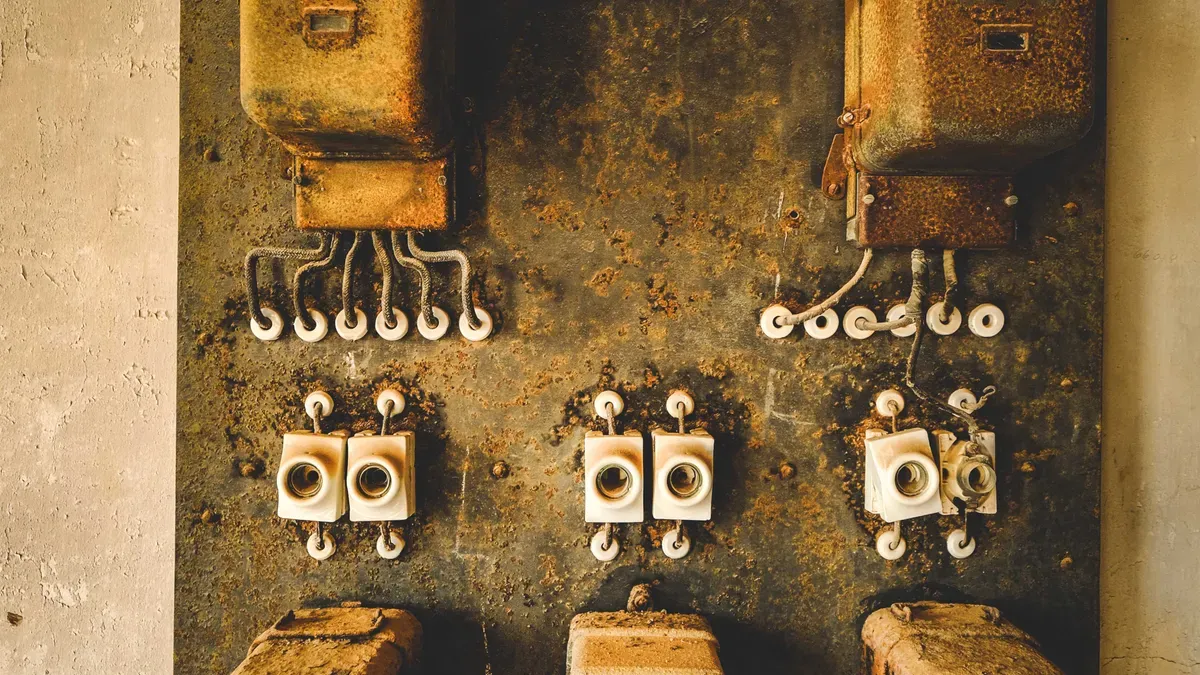

Risks of Exceeding Temperature Range

Failure Modes

If a relay works outside its safe temperature range, it can fail in different ways. Some problems happen quickly, while others take time to show up. Here are some common ways relays can fail:

Coil overheating: The coil can get very hot if the air is warm. This can make the relay stop working or act oddly.

Overheating: Bad airflow or high heat can make the relay too hot. This can ruin the insulation and make the relay not last as long.

Environmental factors: Dust, dirt, and water can build up on the relay. These things can cause rust or even short-circuits. Chemicals in the air can also hurt relay parts.

If you see these problems, check the relay and the area around it right away.

Application Consequences

Using a relay outside its safe temperature range can cause big problems for your system. The relay might not work like it should. The inside of the relay can get much hotter than the air around it because the coil and contacts make heat. This can make the relay break early or work in a way you cannot trust. Your machines might stop working, or you could see random shutdowns. Sometimes the relay does not turn on or off at the right time. These problems can cost a lot in downtime and repairs.

Signs of Temperature Issues

You can find temperature problems in relays if you know what to look for. Watch for these signs:

Other warning signs are higher electrical resistance, insulation damage, coil trouble, contact wear, weak pressure, and lower performance. If you see any of these, act fast to stop bigger problems.

Relay Selection Tips for Your Environment

Assessing Application Needs

You should start by looking at your application's needs. Think about how hot or cold your environment gets. Check if your system faces dust, moisture, or vibration. You want to make sure your relay can handle these challenges. Here are some things to consider:

Check how much heat your system makes. This helps you know if you need extra cooling.

Look at the ambient temperature where you will use the relay.

Test how the relay works in both hot and cold conditions.

Make sure the relay can handle shocks and electromagnetic noise.

Review how moisture or dust might affect the relay.

If you check these things, you can pick a relay that works well and lasts longer.

Reviewing Specifications

You need to read the relay's datasheet carefully. Look for the operating temperature range. Choose a relay with a wide range if your system faces extreme conditions. Here are some key points:

Pick a relay that matches your temperature needs.

Use heat sinks or fans if your system gets very hot.

Make sure the relay is rated for dust, water, or other tough conditions.

Plan for regular checks to spot problems early.

If you use an electro mechanical relay, check if it can handle the load and the environment. This helps you get reliable performance.

Best Practices

You can follow some simple steps to keep your relay working well:

Tip: Always match the relay to your environment and check it often. This helps you avoid failures and keeps your system safe.

It is important to know the operating temperature range for industrial relays. This helps you stop problems and keep your system safe. Pick relays that work well in your area. Always look at the datasheet and follow the rules.

Check relays often.

Use fans or other cooling if needed.

Make sure the relay area stays clean.

Remember: Doing these things helps protect your equipment and saves you from losing time and money.

FAQ

What happens if you use a relay outside its temperature range?

If you use a relay outside its safe temperature, it can break early or work in a dangerous way. The relay might stop working, get too hot, or hurt other parts. Always look at the datasheet to know what is safe.

How can you tell if a relay has temperature problems?

You might see melted pieces, smell something odd, or notice the relay does not switch. Sometimes, the resistance goes up or the contacts feel weak.

Can you improve relay life in hot environments?

Yes! You can put in fans or heat sinks to help. You can also pick relays that can handle more heat. Keep the area clean and check for dust often.

Do all relays have the same temperature range?

No. Each relay type has its own temperature range. Solid-state relays can usually take more heat than electromechanical ones. Always check the datasheet to compare.
