What is a relay module and how does it work?

What is a relay module and how does it work

A relay module works like an electronic switch. It lets you control high-voltage devices with low-power signals. You use it to keep your circuits safe. It gives isolation between your control system and the devices you use. This device is important in many automation and electronics projects. It lets you turn things on or off without touching them directly.

Key Takeaways

A relay module works like an electronic switch. It lets you control high-voltage devices with low-power signals. This keeps things safe. Relay modules keep your control circuit safe from high voltages. They also protect it from electrical noise. Pick the right relay module by looking at voltage ratings. Check the current capacity and contact types too. Make sure it matches your project needs. Relay modules can be used in many ways. You can use them in home automation. They are also used in factories and cars for easy control. Check your relay module often for overheating. Look for loose connections to keep your projects safe and reliable.

Relay Module Basics

What Is a Relay Module

A relay module is a type of electronic switch on a small board. You can use it to control big electrical devices with a small signal. This signal comes from a microcontroller or another low-power circuit. The board has extra parts that help keep your control system safe. These parts protect your main circuit from high voltages and strong currents. Relay modules are used in home automation, robotics, and machines in factories.

A relay module works like a bridge between your low-power circuit and a high-power device. This lets you turn on or off things like lights, fans, or motors without touching the high-voltage part.

How It Works

When you send a small signal to the relay module, it turns on an inside switch. This switch connects or disconnects the high-power device from its power. The relay module keeps your control circuit and the load circuit apart. This is important because it protects your control system from voltage spikes and electrical noise from the load. This separation helps your system stay stable and work well.

Relay modules can work with many different voltages and currents. Here is a simple table that shows the usual ranges:

Voltage Range (V)	Current Range (A)
0 to 150	N/A
-150 to 0	N/A
-75 to +75	N/A

You can use a relay module to control many kinds of devices. Some modules have one channel, and others have more. This means you can control more than one device with one board. You pick the relay module that fits your project best.

Components

Relay Module Components

A relay module has a few main parts. Each part does something important. Here are the most common parts you will find:

Relay Switch: This is the main part of the module. It opens or closes the circuit to control your device.

Input Pins: You use these pins to send a control signal. The signal often comes from a microcontroller like Arduino.

Output Terminals: These connect to the high-power device you want to control. You can use them for things like lamps or motors.

Indicator LED: This small light turns on when the relay is working. It helps you see if your signal is going through.

Driver Circuit: This part makes the small input signal stronger. It helps the relay switch turn on.

Tip: Always look at the labels on the input and output pins before you connect wires. This helps you avoid mistakes and keeps your project safe.

Supporting Parts

Supporting parts help the relay module work better and last longer. Some of the most important ones are:

Optocoupler: This part keeps your control circuit and relay circuit apart. It uses light to send signals. This stops electrical noise and spikes from reaching your microcontroller. Optocouplers also help change the voltage level from your control side to the relay side. You can use a 3.3V signal to control a 5V relay. By keeping the grounds apart, optocouplers stop ground bounce and cut down on electromagnetic interference.

Flyback Diode: When the relay turns off, it can make a sudden voltage spike. The flyback diode gives this spike a safe path. This keeps your other parts safe from harm.

Transistor: Sometimes, your control signal is too weak for the relay. The transistor acts as a switch and makes the signal stronger.

Resistors and Capacitors: These small parts help control how electricity flows. They also filter out noise. They make sure your relay module works well.

Here is a simple table to help you remember the main supporting parts and what they do:

Supporting Part	What It Does
Optocoupler	Keeps circuits apart, changes voltage, cuts noise
Flyback Diode	Protects against voltage spikes
Transistor	Makes weak signals stronger
Resistors/Capacitors	Control current, filter noise

Each part has a clear job. When you use a relay module, these parts work together. They help keep your project safe and working well.

Relay vs. Relay Module

Differences

When you look at a relay and a relay module, you see some big differences. A relay is a simple device with moving parts. It opens or closes a circuit. You need extra parts to use it safely with electronics. A relay module is a board that is ready to use. It has safety features built in. It also makes wiring much easier.

Here is a table that shows the main differences:

Feature	Standalone Relay	Relay Module
Electrical Isolation	No	Yes
Voltage Level Flexibility	Limited	High
Control of High-Power Devices	Difficult without additional components	Easy with low-power signals
Fail-Safe Operation	No	Yes
Application Versatility	Limited	Wide-ranging

A relay module gives you electrical isolation. This keeps your control circuit safe from high voltage. You can use different voltage levels with a relay module. You can turn on big devices with small signals. Relay modules often keep the switch in the last position if power goes out. This helps your system stay safe and work well.

Relay modules have parts like optocouplers and flyback diodes. These protect your electronics from voltage spikes and noise. Standalone relays do not have these parts. You must add them if you want the same safety.

Advantages

Relay modules have many good points over basic relays. Here are some main benefits:

You get better safety because the module keeps circuits apart.

You can turn on big loads with small signals.

You will find wiring and setup much easier.

You get built-in protection, like checking temperature and stopping failures.

You get reliable use, and some modules last a very long time.

You can use relay modules in many places, like homes or factories.

Tip: Relay modules often have ways to check for problems. This helps you find issues early. Your system will be safer and work better.

Relay modules can handle high current and voltage. They work well in tough places. They last longer and need less fixing, so you save money. Their design lowers the chance of dangerous problems. You can feel safe knowing your project is protected.

Types

Electromagnetic

Electromagnetic relays are used in many control systems. They have a coil and moving parts inside. When you send a signal, the coil makes a magnetic field. This field pulls a metal armature. The armature opens or closes the contacts. These relays make a clicking sound when they work. You can use them for both AC and DC loads.

Electromagnetic relay modules last about five years if used normally. The coil can work for about 40,000 hours before heat causes problems. In tough places, these relays may wear out faster.

Solid-State

Solid-state relays use electronic parts instead of moving pieces. You control them with low-power signals. SSRs turn devices on and off much faster than electromagnetic relays. They do not make noise because there are no moving parts. These relays work well where there is dust, moisture, or vibration.

Here is a table that shows how solid-state relays and electromagnetic relays are different:

Feature	Solid-State Relay (SSR)	Electromagnetic Relay (EMR)
Construction	Uses semiconductor materials	Has coil, armature, and contacts
Operation	Optically couples circuits	Uses electromagnetic properties
Noise Generation	No noise	Makes noise and arcing
Switching Speed	100 times faster	Slower due to mechanical movement
Lifespan	100 times longer	Shorter due to wear
Heat Generation	Needs heat sinks	Minimal heat
Contact Configuration	Single set of contacts	Multiple sets available
Compatibility	AC or DC, not both	Can support both AC and DC
Sensitivity to Conditions	Immune to corrosion and weather	Sensitive to environment

SSRs have many good points:

They respond quickly, which helps keep things safe.

No moving parts means they last longer.

SSRs work well in rough places.

They are quiet, so there is less noise.

They save energy and use less power.

But SSRs also have some downsides:

They cost more than electromagnetic relays.

They may not handle very high currents.

SSRs make heat and need cooling.

Too much voltage can break them.

There can be a small voltage drop across the switch.

Channels

Relay modules come in different channel types. Each channel lets you control one device. If you want to control more devices, pick a module with more channels. Here is a table that shows how many devices each type can control:

Relay Module Type	Number of Channels	Control Capability
1-channel	1	Controls 1 device
2-channel	2	Controls 2 devices
4-channel	4	Controls 4 devices
8-channel	8	Controls 8 devices

Tip: Multi-channel relay modules let you control many devices at once. This makes your automation projects easier and more organized.

Applications

Home Automation

A relay module can help make your home smart. Many people use them to control lights, fans, and appliances.

You can turn lights on or off using your phone.

You can control fans to keep rooms cool or warm.

You can start appliances like coffee makers with one tap.

Relay modules help you save energy at home. The table below shows how they work:

Feature	Description
Low Power Consumption	These modules use less than 0.7W when idle, so they are good for many devices.
Scalability	ZigBee lets you connect hundreds of devices, but Wi-Fi relays have limits.
Building Energy Management	You can use these with Building Management Systems for better energy use.

Tip: You can link relay modules to smart home systems. This helps you automate tasks and lower your power bill.

Industry

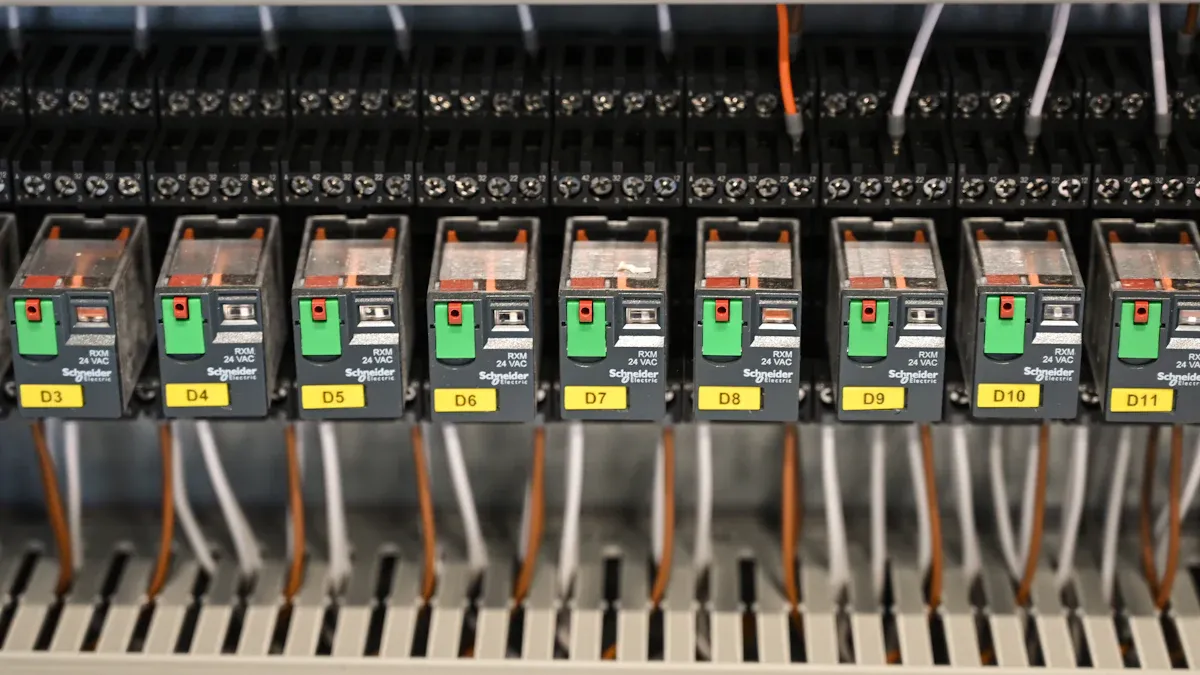

Factories and businesses use relay modules for safety and control. You see them in machines, control cabinets, and smart factories. They help keep workers safe and make machines work well.

Industry/Application	Description
Safety Relay Modules and Sensors	These help machines and systems stay safe by watching safety devices.
Automotive Industry	Uses safety relay modules to control and protect car-making machines.
Control Cabinet Building	Uses relay modules for safety and control in electrical setups.
Device Manufacturers	Uses safety relay modules to keep devices working safely.
Automated Guided Vehicles (AGV)	Uses safety relay modules to help AGVs move and work safely.
Digital Factory	Uses safety relay modules in smart factories.
Electrical Installations	Uses safety relay modules for control in electrical systems.
Machine Building	Uses safety relay modules to keep machines safe.

Relay modules work well even in tough places. The table below shows how they perform:

Feature	Description
Downtime Reduction	Robotic welding units lose only 17 hours each month
Operational Range	Works from −40°C to 85°C
Vibration Resistance	Handles 50Hz, 5g RMS vibration
Surge Protection	Can take up to 20kA lightning surges
Humidity Performance	Works for 36 months in 95% humidity
Fault Response Time	Responds in milliseconds in protection systems

Automotive

You find relay modules in many car parts. They help control big systems with small switches.

Headlight Relay: Lets you switch headlights with a small switch.

Fuel Pump Relay: Makes sure the fuel pump runs only when needed.

Electric Cooling Fan Relay: Turns on fans when the engine is hot.

Power Windows and Door Locks: Controls power for windows and locks.

Starter Relay: Connects the battery to the starter motor safely.

Relay modules in cars can stop working if water or chemicals cause rust.

Failure Mode	Description
Corrosion	Water or chemicals can cause rust, which can break the relay.

Arduino Projects

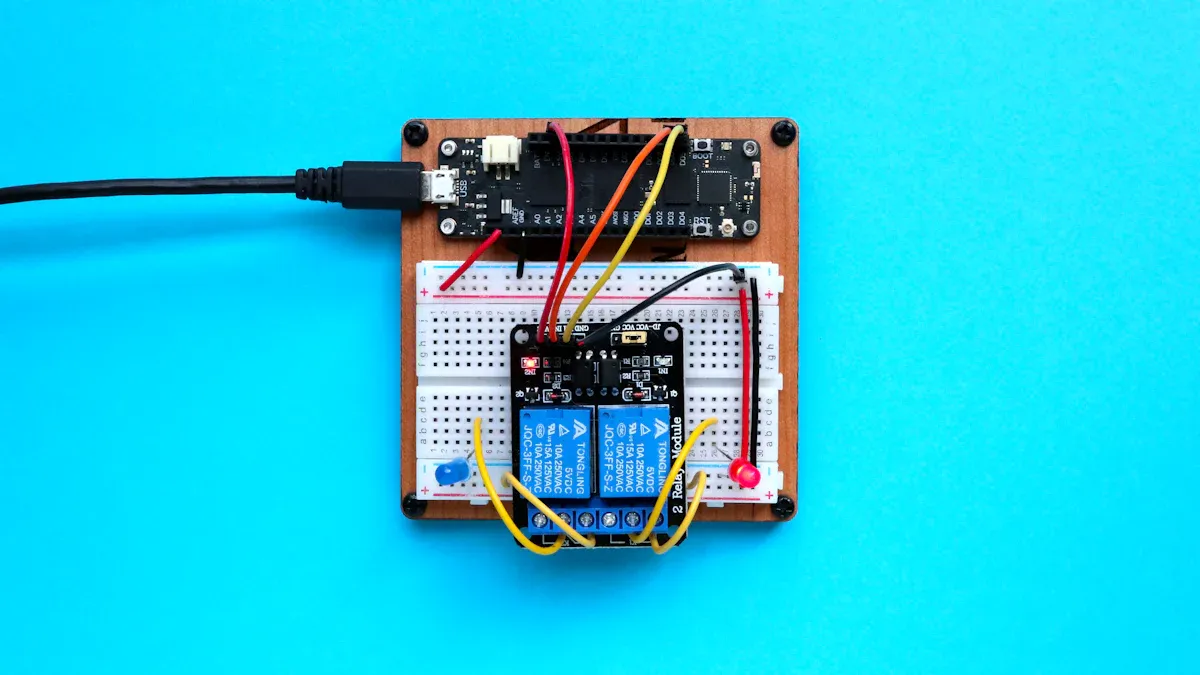

Relay modules let your Arduino do more things. You can control devices that need more power than the Arduino gives.

Check how much power your device needs.

Make sure your Arduino can turn on the relay coil.

Try different ways to set up:

Use reed relays driven directly

Use single 5V relays powered by Arduino's 5V

Use four relay shields with their own power

Use multi-relay modules with high or low trigger

Change things for 3.3V Arduino boards

Note: Relay modules help you build smart projects. You can automate lights, fans, and even security with your Arduino.

Choosing Relay Module

Ratings

When you pick a relay module, you must check some ratings. These ratings help you choose the right one for your project. They also keep your devices safe. Look at the voltage rating first. It should match or be higher than your device's voltage. Surge current durability shows how much current the relay can handle at once. Isolation keeps your control circuit safe from high voltage. Some modules have more than one contact. This lets you control more than one thing at the same time.

Electrical Rating	Description
Surge Current Durability	Maximum amperage a relay contact can withstand at once for a specific load type.
Voltage Rating	Must be greater than or equal to the voltage driving the electrical load.
Isolation Between Control & Load Circuits	Protects sensitive control circuits from high voltages/currents on the load side.
Multiple Contacts	Allows simultaneous control of several circuits or a specific sequence of operation.

Tip: Always check the ratings before using your relay module. This helps stop damage and keeps your system safe.

Contacts

Relay modules use contacts to turn things on and off. There are different types of contacts. Some are normally open (NO), some are normally closed (NC), and some are changeover. NO contacts let power flow only when the relay is on. NC contacts stop power when the relay is on. Changeover contacts switch between two circuits. If you want to control many things, pick a module with more contacts. This gives you more ways to set up your project.

Use Cases

You can use a relay module in many ways. At home, you can control lights or fans. In factories, you can run machines or safety systems. In cars, relay modules help with headlights, fuel pumps, and fans. For best results, follow good wiring rules. Keep control wires away from power wires. Use coil suppression to stop voltage spikes. Give the module space so it does not get too hot. Check your relay module often to find problems early.

Best Practice	Description
Proper Wiring Techniques	Keep low-voltage wires away from high-power wires. Use the right wire size and make sure connections are tight. This helps stop overheating and future problems.
Coil Suppression	Use a diode for DC coils to stop voltage spikes. For AC coils, use an RC network to lower voltage jumps.
Mounting and Orientation	Leave space around the module for heat to escape. Check how to mount it so it works well.
Routine Inspection and Maintenance	Check your relay module often. Look for signs of overheating and loose wires. Test it by hand to make sure it works right.

Note: Picking the right relay module makes your project safer and more reliable.

A relay module helps you control big devices with small signals. It keeps your electronics safe by giving protection and isolation. You should check the voltage, current, and contact type before picking one. Make sure the relay module fits what your project needs. Relay modules let you handle control jobs and automation safely.

FAQ

What does a relay module do in a circuit?

A relay module lets you control high-power devices with a low-power signal. You use it to switch things like lights or motors on and off safely.

What types of devices can you control with a relay module?

You can control lights, fans, pumps, motors, and home appliances. Relay modules work with many devices that need more power than your control board gives.

What is the difference between a relay and a relay module?

A relay is a basic switch. A relay module adds safety parts like optocouplers and driver circuits. You get easier wiring and better protection with a relay module.

What should you check before choosing a relay module?

You should check voltage and current ratings, contact type, and the number of channels. Make sure the module matches your device and project needs.
